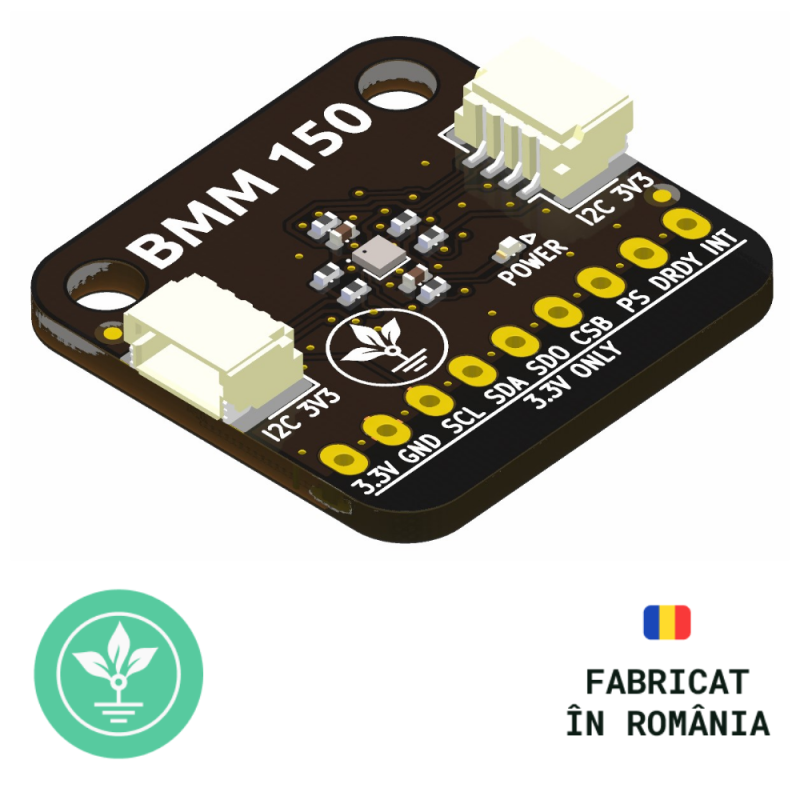

Magnetometru BMM150
We deliver to lockers!
Pick up your orders anytime, hassle-free!
Fast Delivery!
Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!
2-Year Warranty
Reliable products, worry-free!
Easy 14-Day Returns
Unused items? No questions asked!
Description
Produs original GroundStudio
 |
 |
Produsele GroundStudio sunt proiectate si asamblate in Romania, in regim Open Hardware, folosind componente de calitate superioara. |
Descarcari:
Schematic si Layout |
Descrierea produsului:
BMM150 este un modul senzor geomagnetic in 3 axe care poate fi folosit in proiecte care necesita o busola.
Prezenta tensiunii de alimentare pe portul I²C 3V3 este indicata prin led-ul "POWER" amplasat pe modul.
Pentru cazurile in care se doreste minimizarea consumului, led-ul "POWER" poate fi deconectat cu ajutorul jumperului "Disable PWR LED" aflat pe spatele pcb-ului
Adresa I²C a senzorului poate fi modificata cu ajutorul jumperului de pe spatele pcb-ului. Jumperul vine implicit deschis (cu adresa 0x13) si poate fi cositorit (valoarea adresei devenind 0x11).
Conectorii I²C 3V3 sunt compatibili cu standardele Qwiic (SparkFun) si STEMMA QT (Adafruit).
Specificatii tehnice:
- Tensiune de alimentare: 3.3V
- Interfata: I2C si SPI
- Conector I2C: SH 4P cu pitch 1mm
- Adresa I2C: 0x13 (implicit - jumper deschis) sau 0x11 (jumper inchis)
- Deplasare Zero-B: ±40µT
- Domeniu magnetic(typ.): ±1300µT (axa x,y), ±2500µT (axa z)
- Consum de curent mediu (chip): 170 µA(mod redus), 500 µA (mod normal)
- Domeniu temperatura de operare: -40°C - 85°C
- Dimensiune pcb: 23.4mm x 22.9mm
Continutul coletului:
1x buc. modul magnetometru BMM150 GroundStudio
1x buc. bareta 1*9 pini tata
ATENTIE: Baretele de pini incluse in colet nu sunt cositorite si nu oferim servicii de cositorire pentru acestea.
