GroundStudio VU-meter - DIY Kit

Description

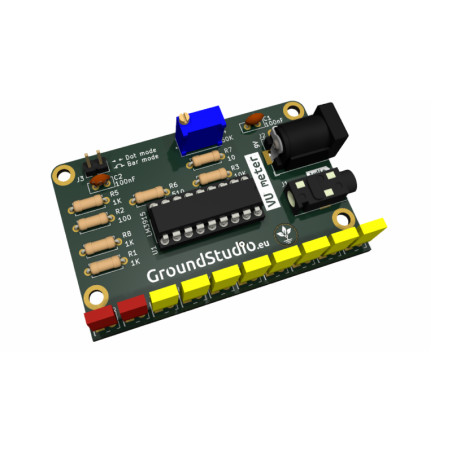

This VU meter, short for “Volume Unit meter,” is an educational tool used to introduce students and electronics enthusiasts to the field of audio signal measurement and display. The kit is designed to provide a visual representation of the audio signal level, making it easier to monitor and control the volume of audio equipment. It does not provide an exact numerical measurement but offers a relative indication of volume.

The kit requires assembly and presents a pleasant challenge for anyone looking to improve their soldering skills, practice component identification, and strengthen their basic electronics knowledge.

Instructions

The kit consists of individual components, and basic electronics knowledge (soldering, component identification, etc.) is required to assemble and operate it, along with specific tools (soldering iron, flux, pliers, etc.).

Detailed assembly instructions, required tools, kit components, and documentation (including the circuit schematic) are available on the dedicated platform learn.groundstudio.eu. To ensure you always have access to up-to-date information, documentation is available exclusively on our platform and is not provided in paper format.

The instructions can be accessed by clicking on the QR code or scanning it.

Power Supply

After assembly, the kit requires a power source (battery, power adapter, etc.). This is not included in the kit.
More details on powering the kit can be found on the dedicated instructions page.

Contents

• 1 x GroundStudio VU-meter - DIY Kit
• Note: Does not include a power source (battery, power adapter, etc.).
