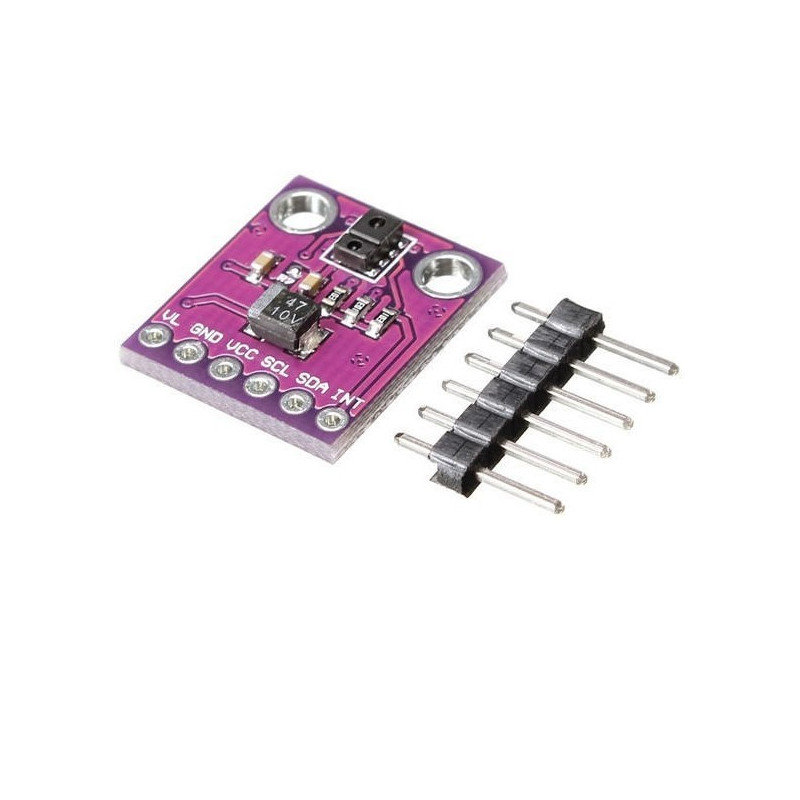

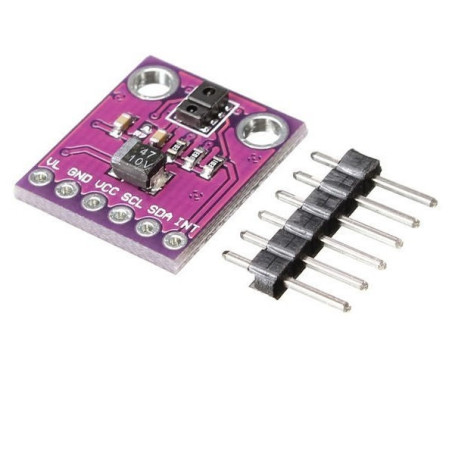

CJMCU-9930 APDS-9930 Digital Proximity and Ambient Light Sensor
Pick up your orders anytime, hassle-free!
Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!
Reliable products, worry-free!
Unused items? No questions asked!
Description:
Optical modules integrated with ALS, infrared LEDs and proximity detectors
Ambient Light Sensing (ALS)
Approximate human visual response
Programmable interrupt capability with upper and lower thresholds
Up to 16-bit resolution
High sensitivity operation behind dark glass
0.01lux low lumen performance
Proximity detection
Fully calibrated to 100 mm detection
Integrated infrared LED and synchronous LED driver
Eliminates factory calibration of the proximity sensor
Programmable wait timer
Wait state power consumption - 90μA typical
Programmable range from 2.7 ms to more than 8 seconds
I2C interface compatible
Up to 400kHz (I2C fast mode)
Dedicated interrupt pin
Sleep Mode Power - 2.2μA typical
