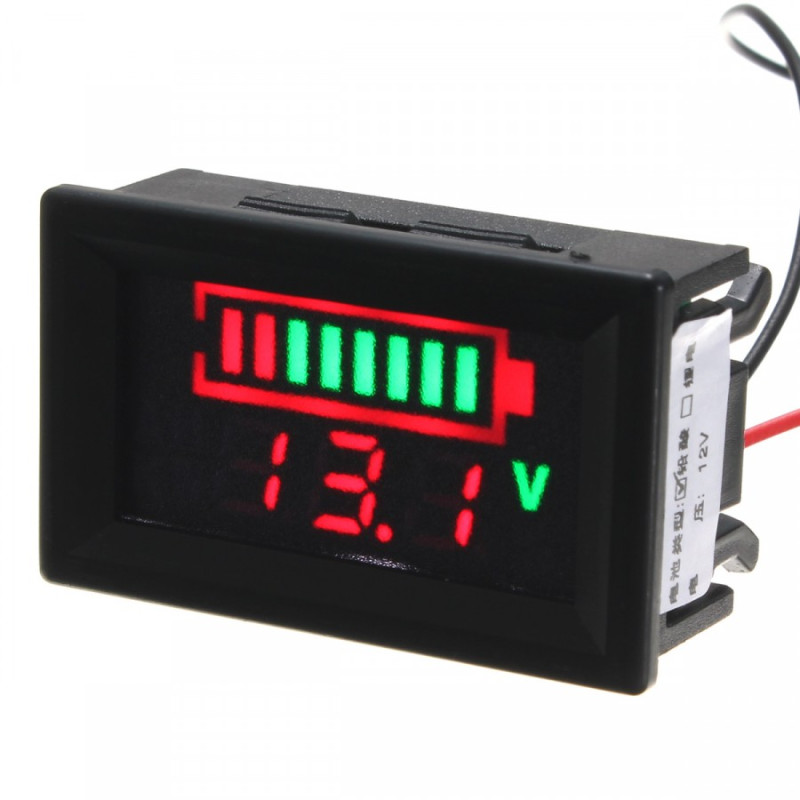

Battery Indicator Voltmeter
We deliver to lockers!
Pick up your orders anytime, hassle-free!
Fast Delivery!
Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!
2-Year Warranty
Reliable products, worry-free!
Easy 14-Day Returns
Unused items? No questions asked!
Description
Overview
This voltmeter is recommended for measuring battery voltage or other lead acid-based batteries. It has a display of 8 levels that illuminate or not depending on the actual battery voltage.
NOTE:It will only display voltage when measure lead-acid battery!!
Specifications
1. Working current:5-15mA
2. Eight electricity Resolution: 10% 25% 40% 50% 60% 75% 90% 100%
3. Voltmeter accuracy: 98%
4. Working temperature: -10 ~ +65 C
5. Operating Humidity: 10 ~ 80%
6. Dimensions: 48*29*21 mm
Indicator:
Battery voltage is greater than 11.1V, 1 led indicator is lit.
Battery voltage is greater than 11.3V, 2 led indicator is lit.
Battery voltage is greater than 11.6V, 3 led indicator is lit.
Battery voltage is greater than 11.9V, 4 led indicator is lit.
Battery voltage is greater than 12.2V, 5 led indicator is lit.
Battery voltage is greater than 12.5V, 6 led indicator is lit.
Battery voltage is greater than 12.9V, 7 led indicator is lit.
Battery voltage is greater than 13.3V, 8 led indicator is lit.
Product Details
CSKCNR_12V_indicator
6427854005984
117 Items
Comments (0)
Grade
No customer reviews for the moment.
