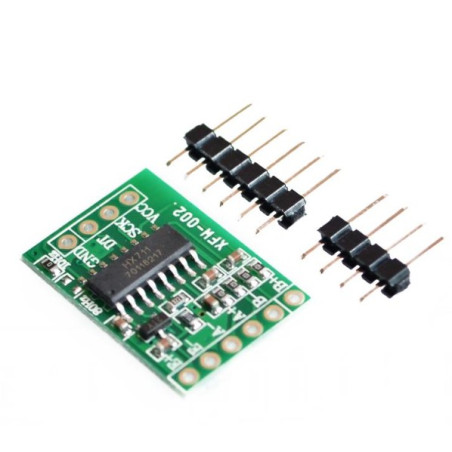

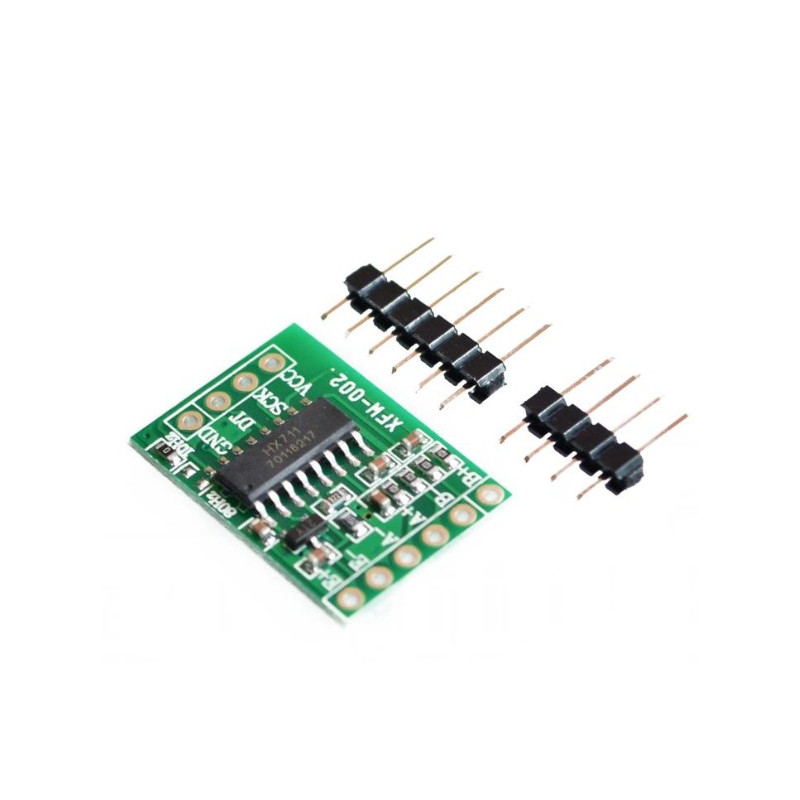

Digital scale sensor reader module HX711

Name: Digital scale sensor reader module HX711
Brand: ArduShop
SKU: BOQWRO_HX711
Price: 6.37 RON
Availability: OutOfStock

Reference BOQWRO_HX711

Reads the output of the load cell sensor.

lei6.37

Tax included

Quantity

Out-of-Stock

We deliver to lockers!

Pick up your orders anytime, hassle-free!

Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

2-Year Warranty

Reliable products, worry-free!

Easy 14-Day Returns

Unused items? No questions asked!

Description
Product Details

Description

Overview

The HX711 integrated circuit module can be used to communicate with two load cells. Load cells are used to weigh objects both at industrial level and for smaller weights.
The module is a high-precision 24-bit, and communicates with Arduino development plates on a two-wire protocol (clock thread and data thread).
With two such products and 4 load cells you can build your own scales.

Specifications

Supply voltage: 2.7V - 5.5V;
Current: 10mA;
ADC resolution: 24 bit;
2 channels;
Differential input.

Wiring

lf4NF53ud1viQ3s_BjlTpTasqAGiqcTF6XpuVq6k

Tutorial & Code

https://www.hackster.io/team-arduinotronics/arduino-scale-b821ae

Datasheet

https://www.mouser.com/ds/2/813/hx711_english-1022875.pdf

Product Details

Reference BOQWRO_HX711

EAN13 6427854004611
