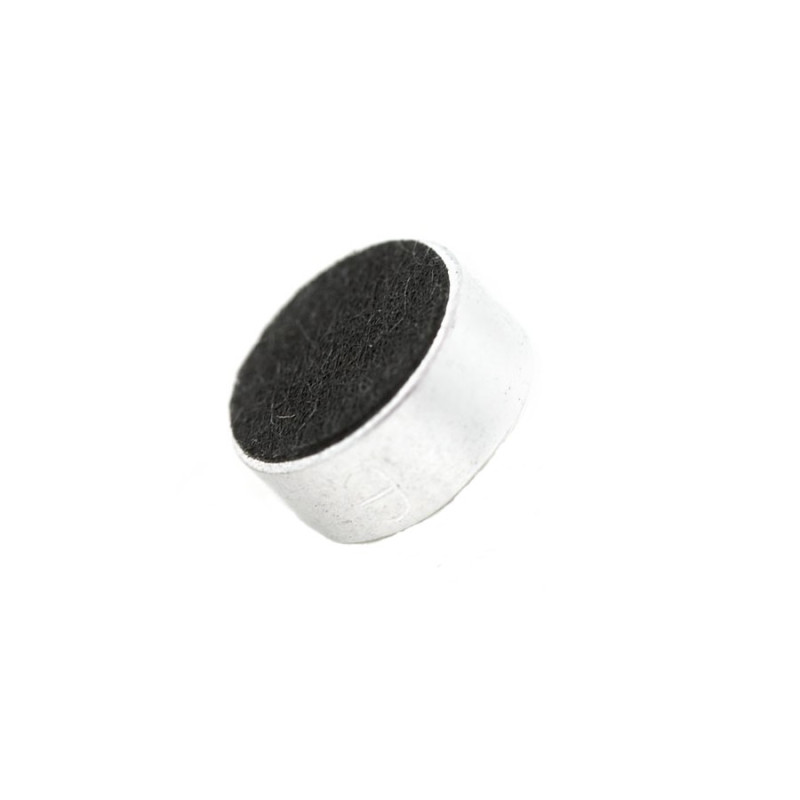

Electret Microphone
  • Electret Microphone
  • Electret Microphone
  • Electret Microphone

Electret Microphone

NAFUDD_microphone
lei1.12
Tax included
Quantity
573 Items

  We deliver to lockers!

Pick up your orders anytime, hassle-free!

  Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

  2-Year Warranty

Reliable products, worry-free!

  Easy 14-Day Returns

Unused items? No questions asked!

Description

Overview

An electret microphone is a type of electrostatic capacitor-based microphone, which eliminates the need for a polarizing power supply by using a permanently charged material.

An electret is a stable dielectric material with a permanently embedded static electric dipole moment (which, due to the high resistance and chemical stability of the material, will not decay for hundreds of years). The name comes from electrostatic and magnet; drawing analogy to the formation of a magnet by alignment of magnetic domains in a piece of iron. Electrets are commonly made by first melting a suitable dielectric material such as a plastic or wax that contains polar molecules, and then allowing it to re-solidify in a powerful electrostatic field. The polar molecules of the dielectric align themselves to the direction of the electrostatic field, producing a permanent electrostatic "bias". Modern electret microphones use PTFE plastic, either in film or solute form, to form the electret.

Specifications

  • Operating voltage: 1.5V - 10V;
  • Recommended voltage: 3V;
  • Current: 0.5mA;
  • Frquency: 50Hz - 20kHz;
  • Signal/Noise Ratio: 58dB;
  • Sensivity: -48dB - -66dB.
  • Size: 9.7mm x 6.7mm.

Image result for electret microphone

Product Details
NAFUDD_microphone
6427854018373
573 Items
