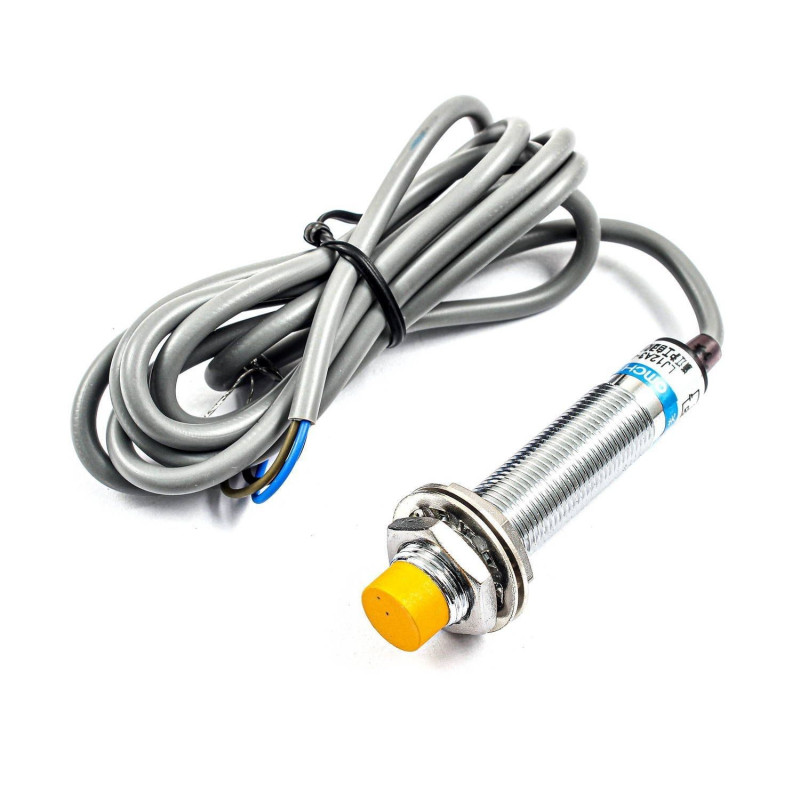

Inductive Proximity Sensor Switch - LJ12A3-4-Z/BX
  • Inductive Proximity Sensor Switch - LJ12A3-4-Z/BX

Inductive Proximity Sensor Switch - LJ12A3-4-Z/BX

ZJNKLW_LJ12A3-4-Z/BX
Senzor inductiv de proximitate
lei23.56
Tax included
Quantity
Out-of-Stock

  We deliver to lockers!

Pick up your orders anytime, hassle-free!

  Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

  2-Year Warranty

Reliable products, worry-free!

  Easy 14-Day Returns

Unused items? No questions asked!

Description

Product details:

Inductive type proximity switch with NPN Normally Open transistor switch. Output upon detection.

https://www.youtube.com/watch?v=soJ4czkKpT4


Specification:

Detection distance: 4mm
Setting distance: 0-3.2 mm
Supply voltage: 6-36Vdc, 5Vdc; 90-250Vac, 36Vac, 380Vac, 50/60Hz
Output current DC type: 300mA max; AC Type: 400mA
Standard detected object: Mild steel (12x12x1mm)
Sensing object Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency: 500Hz
Matched mounting bracket: M12 mounting bracket
Output indication: Red LED
Short-circuit protection: No
Reverse connection protection: Yes
Insulation resistance: 50MΩ min (between charging part and housing)
Dielectric strength: 1000Vac, 1min (between charging part and housing)
IP Rating: IP65
Operating temperature: -25 to 70 °C (13 to 158 °F)

Package included:

1 x Inductive Proximity Sensor Switch


Pin-out:


Product Details
ZJNKLW_LJ12A3-4-Z/BX
6427854033659
