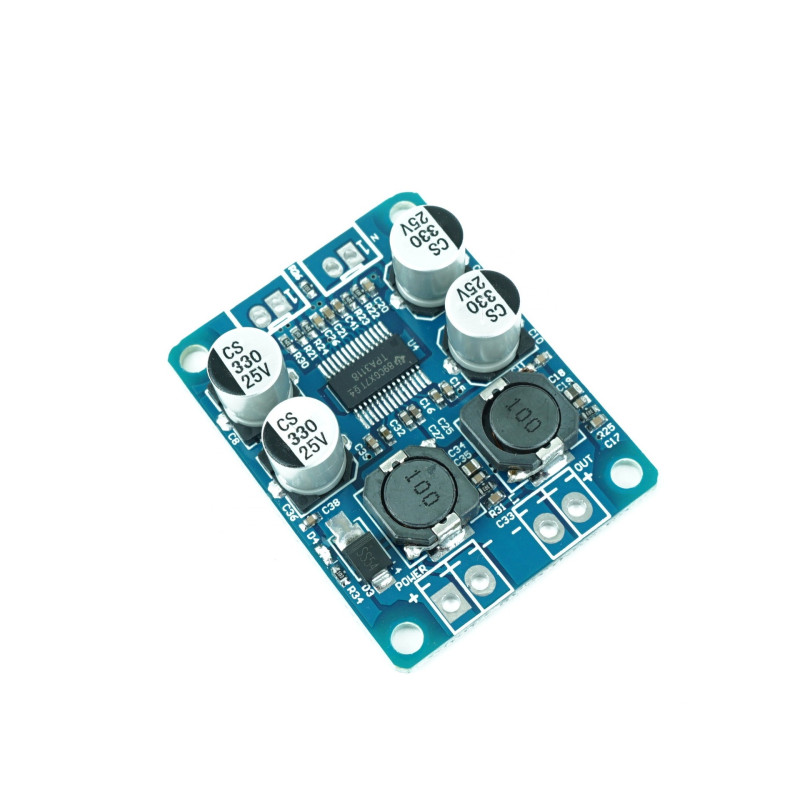

TPA3118 Mono Audio Amplifier Module
We deliver to lockers!
Pick up your orders anytime, hassle-free!
Fast Delivery!
Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!
2-Year Warranty
Reliable products, worry-free!
Easy 14-Day Returns
Unused items? No questions asked!
Description
Overview
This Mono Compact TPA3118 Class D amplifier module is extremely efficient: it delivers 60W at 4 Ohms and does not require the addition of a heat sink thanks to the design of its PCB.
Ideal for all types of DIY projects, it will easily integrate into your audio systems thanks to its simplified implementation.
Due to its feeding range, it is very practical and easily integrable in many situations.
Specifications
Power supply via screw terminal block: from 9 to 24VDC (21V recommended)
Amplifier: TPA3118
Architecture Class: D
Topology: PBTL
Excellent audio quality
Line level input (2VRMS) on screw terminal block
Over Current and Overtemperature Protection
Power: 45 @ 4 ohm (<0.1% THD + N), 60W @ 4 ohm (<10% THD + N)
Input Impedance: 30K ohm
Input Sensitivity: 1.18Vrms
Frequency response: 20Hz - 20kHz to +/- 3dB
Operating Temperature Range: 0 to 50 ° C
Yield: 91% to 21V
Dimensions: 44X35mm
Weight: 52g
Product Details
XVJNCE_TPA3118
6427854031761
55 Items
