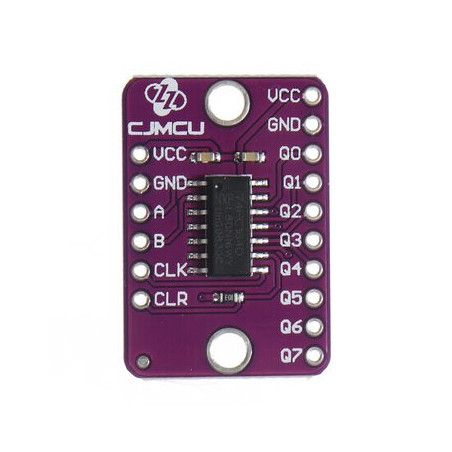

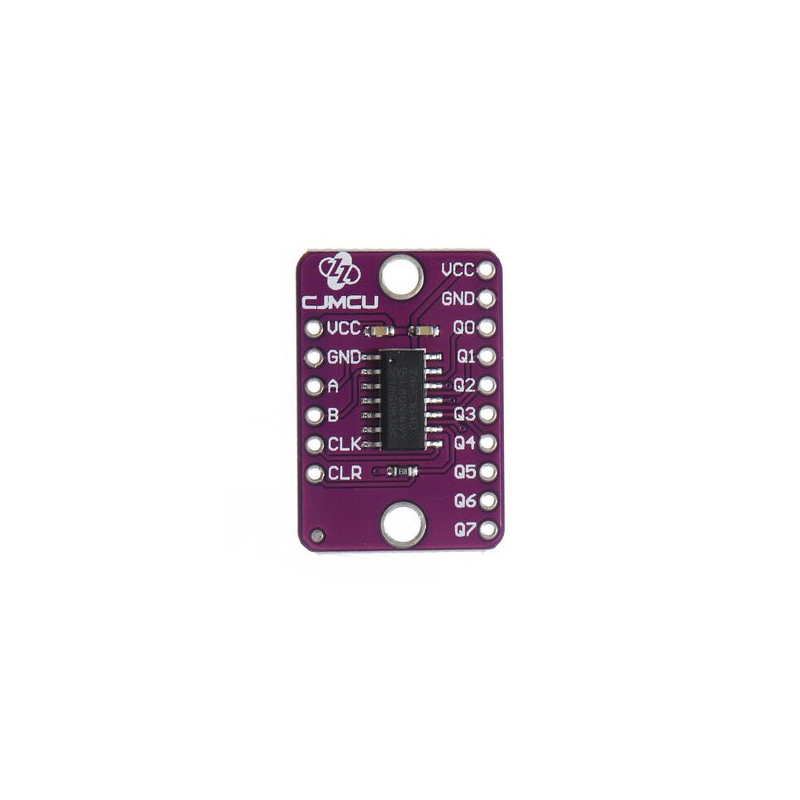

SN74HC164D 8 Bit Shift Register Module

Overview

These 8-bit shift registers feature AND-gated serial inputs and an asynchronous clear (CLR) input. The gated serial (A and B) inputs permit complete control over incoming data; a low at either input inhibits entry of the new data and resets the first flip-flop to the low level at the next clock (CLK) pulse. A high-level input
enables the other input, which then determines the state of the first flip-flop. Data at the serial inputs can
be changed while CLK is high or low, provided the minimum set-up time requirements are met. Clocking
occurs on the low-to-high-level transition of CLK.

Applications

• Programable Logic Controllers
• Appliances
• Video Display Systems
• Output Expander

Specifications

Wide Operating Voltage Range of 2 V to 6 V
Outputs Can Drive Up to 10 LSTTL Loads
Low Power Consumption, 80-μA Maximum I CC
Typical t pd = 20 ns
±4-mA Output Drive at 5 V
Low Input Current of 1-μA Maximum
AND-Gated (Enable/Disable) Serial Inputs
Fully Buffered Clock and Serial Inputs
Direct Clear
On Products Compliant to MIL-PRF-38535,
All Parameters Are Tested Unless Otherwise
Noted. On All Other Products, Production
Processing Does Not Necessarily Include Testing
of All Parameters.
