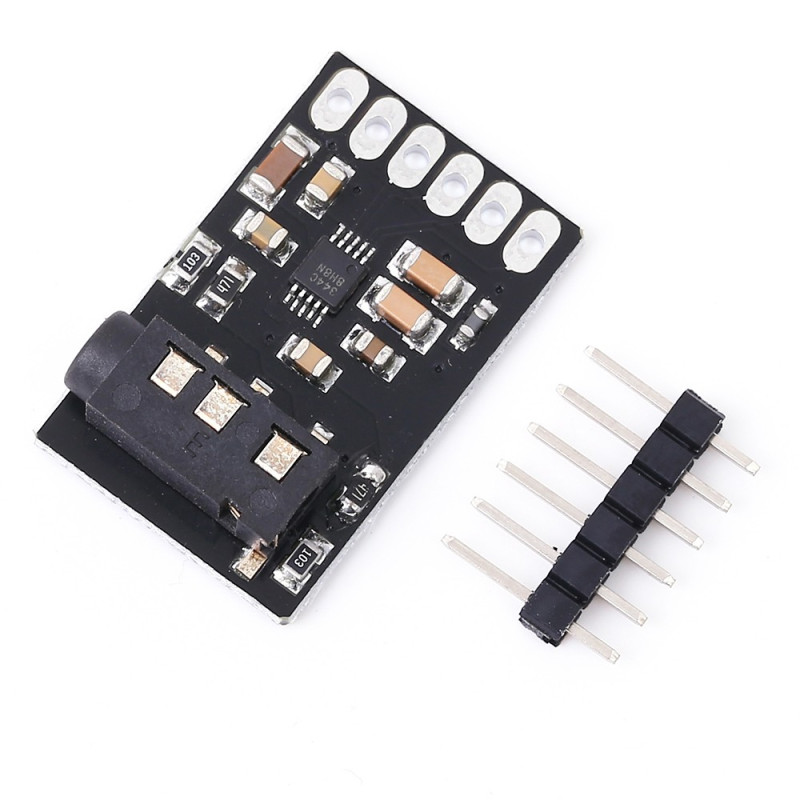

CS4344 D/A Digital to Analog Stereo Audio Converter Module with Linear Analog Low-pass Filter Auto-speed I2S Port For Arduino

Description:
This module based on CS4344. The CS4344 family members are complete, stereo digital-to-analog output systems including interpolation,multi-bit D/A conversion and output analog filtering in a 10-pin package. The CS4344/5/6/8 support all major audio data interface formats and the individual devices differ only in the supported interface format.
The CS4344 family is based on a fourth-order multi-bit delta-sigma modulator with a linear analog low-pass filter. This family also includes auto-speed mode detection using both sample rate and master clock ratio as a method of auto-selecting sampling rates between 2kHz and 200kHz.
he CS4344 family contains on-chip digital de-emphasis, operates from a single +3.3V or +5V power supply, and requires minimal support circuitry. These features are ideals for DVD players & recorders, digital televisions, home theater and set-top box products, and automotive audio systems.

Features:
Chip: CS4344
Resolution: 24 bit
Input Voltages: 3.3V ~ 5V
It can drive 16-120 ohm headphones
Sampling Rate (Max): 192kHz
Dynamic Range: 105dB
THD+N: -95dB
Pin Number: 6 Pin
Operating Temperature: -40℃ ~ 125℃
Operating Humidity: 0% ~ 95%RH
Size: 27mm x 17mm
