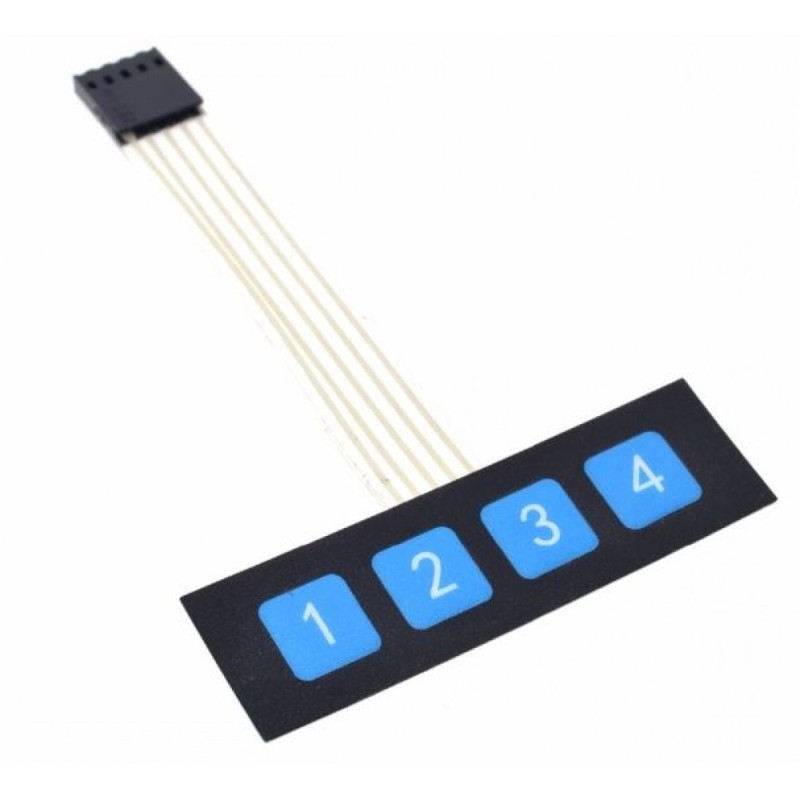

Keypad with 4 Keys

DJOFYB_4kb
lei4.07
Tax included
Quantity
11 Items

  We deliver to lockers!

Pick up your orders anytime, hassle-free!

  Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

  2-Year Warranty

Reliable products, worry-free!

  Easy 14-Day Returns

Unused items? No questions asked!

Description

Overview

This keyboard can be used in various applications where the user needs 4 inputs. The keyboard is small and easy to mount, all you have to do is connect to a microcontroller and then paste it where you need it.

Specifications

  • Cable Length: 87mm
  • Connector: Dupont 5 pins, 2.54mm Pitch
  • Mount Style: Self-Adherence
  • Max. Circuit Rating: 35VDC, 100mA
  • Insulation Spec.: 100M Ohm, 100V
  • Dielectric: Withstand 250VRms (60Hz, 1min)
  • Contact Bounce: <=5ms
  • Life Expectancy: 1 million closures
  • Operation Temperature: -20 to +40 °C

Image result for Keypad with 4 Keys arduino

Product Details
DJOFYB_4kb
6427854006714
11 Items
