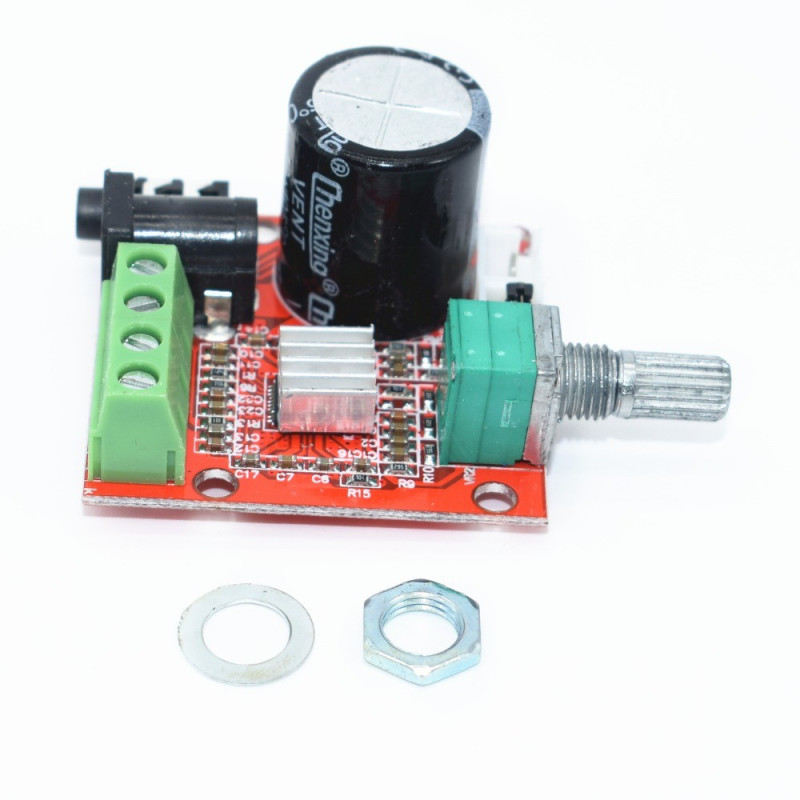

Audio stereo amplifier 2x15W 12V PAM8610

Description

The PAM8610 is a stereo audio amplifier module with a power output of 10W/channel into an 8Ω speaker. It has low THD+N (Total Harmonic Distortion and Noise), delivering high-quality sound and efficiency of over 90% at a low price. It is suitable for your projects where you need a portable, lightweight, and small-sized audio amplifier.

NOTE - The product requires adequate cooling depending on the current intensity level used. If proper cooling is not ensured, it will malfunction and automatically void the warranty.

To ensure proper cooling, you need to attach a heatsink (not included) and provide adequate airflow: the enclosure must be ventilated, and a fan should be used (not included).

Specifications

- Dimensions: Approx. 40 × 40 × 22 mm
- Potentiometer shaft diameter: Approx. 6mm
- Output power: 10W+10W, 8Ω
- Frequency response: 20Hz to 50KHz
- Amplification class: D
- Operating voltage: 7.5 - 15V DC
- Recommended voltage: 12V
- Passive current: 20mA
- Speakers: 4-8 Ohms, 8Ω recommended, with screw terminals
- Noise-canceling circuit implemented on the amplifier board
- Screw terminals for easy speaker connections
- No noise during startup/shutdown
- Power button, mute button, and volume control potentiometer
- Short-circuit protection

Connection Instructions:

Package Contents:

1x Stereo Audio Amplifier 2x15W 12V PAM8610
