CC1101 Wireless Module for Arduino
  • CC1101 Wireless Module for Arduino
  • CC1101 Wireless Module for Arduino

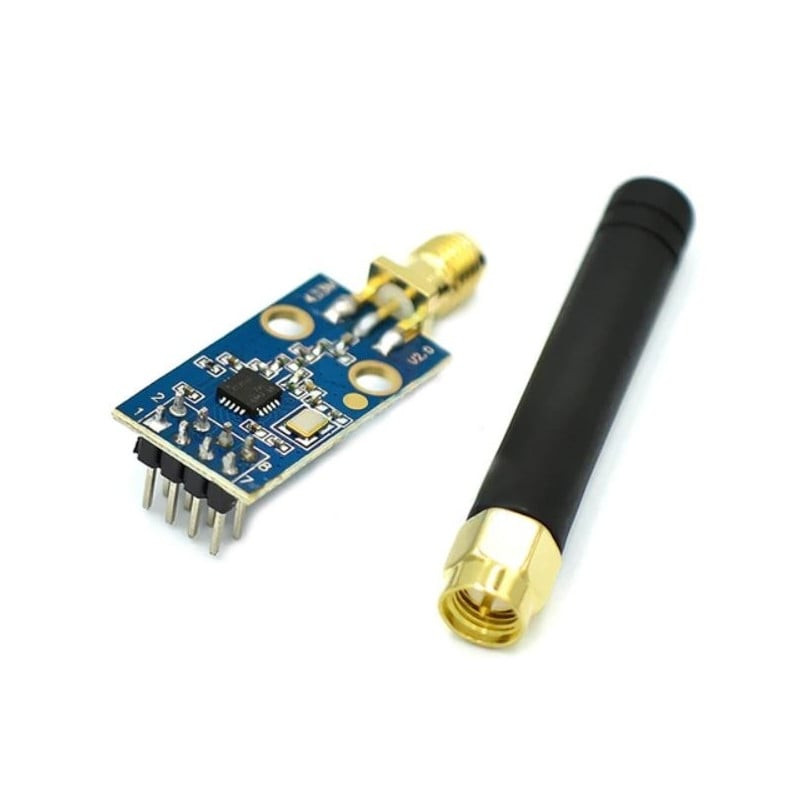

CC1101 Wireless Module for Arduino

FJAVUG_cc1101
lei39.04
Tax included
Quantity
Out-of-Stock

  We deliver to lockers!

Pick up your orders anytime, hassle-free!

  Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

  2-Year Warranty

Reliable products, worry-free!

  Easy 14-Day Returns

Unused items? No questions asked!

Description

Overview

The CC1101 is a low-cost sub- 1 GHz transceiver designed for very low-power wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 315, 433, 868, and 915 MHz, but can easily be programmed for operation at otherfrequencies in the 300-348 MHz, 387-464 MHz and 779-928 MHz bands.

Specifications

  • input voltage :3.3V
  • maximum operating speed: 500kbps, support 2-FSK, GFSK and MSK modulation
  • can be modify the baud rate, power, frequency and other related parameters by software
  • high sensitivity (<1.2kbps -110dDm, 0.1% packet error rate)
  • CRC error detection and built-in hardware address multipoint communication control
  • lower current consumption (RX, 15.6mA; 2.4kbps, 433MHz)
  • programmable control of output power, maximum output power of +10dBm
  • standard 2.0mm DIP pitch interfaces for embedded applications
  • separate 64-byte RX and TX data FIFO

Wiring diagramb7OJWUl784nJUaNlloJ2kAdQ82vVcIKkSGLaWC-T

TUTORIAL here

Datasheet

Click here

or here

Product Details
FJAVUG_cc1101
6427854009173
