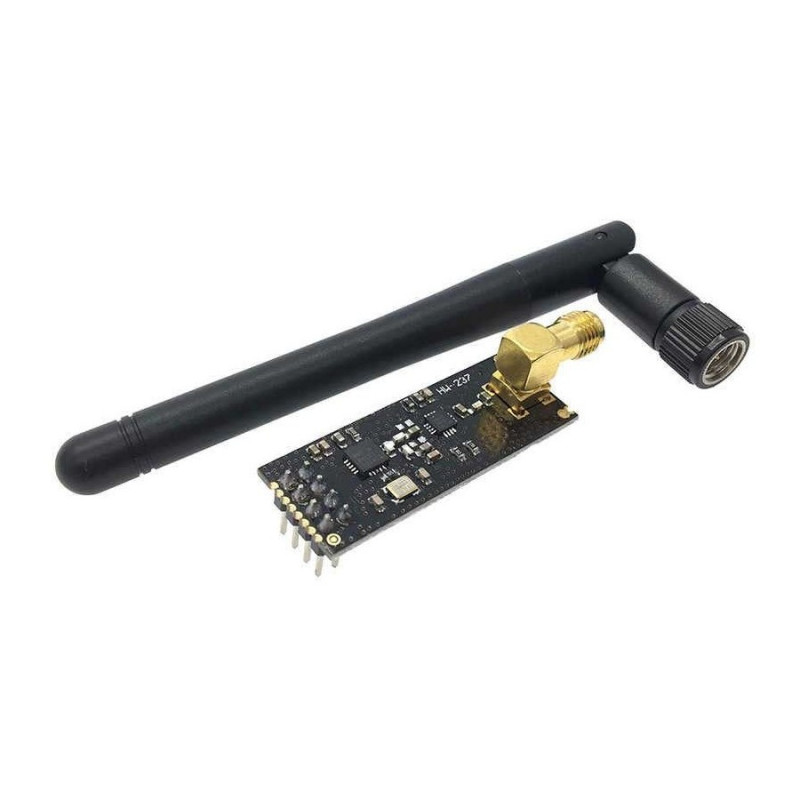

NRF24L01+PA+LNA wireless module 1100-meter

Overview

This wireless Transceiver module is an easy and suitable module if
you want to setup your wireless communication system with low cost!!
It can achieve a good balance between wireless transition performance and cost!
You can easily add it with your own MCU/ARM/PIC/AVR/STM32 system!
What's more, this nRF24L01+ module is designed with Power amplifier and SMA antenna
This allowed you to use the wireless communication up to 1000 meters! (No barrier)

Specifications

Operating voltage: 3V - 3.6V;
Current : maxim 115mA, depends on operating mode;
Operating frequency: 2.4GHz;
Power down mode consumption: 900nA;
126 RF channels;
Transmission rate: 250 kbps, 1 Mbps sau 2 Mbps;
Programmable output power: 0, -6, -12 sau -18dBm;
Receiver sensivity: -82dBm (2 Mbps), -85dBm (1 Mbps) sau -94dBm (250 kbps);
SPI communication through 4 pins, up to 10Mbps;
SPI pins tolerate 5V;
Operating mods: power down, standby, RX or TX;
PA gain: 20dB;
LNA gain: 10dB;
Communication distance: 2Mbps - 520m, 1Mbps - 750m și 250kbps - >1000m; in open space
Size: 38 x 16.46 x 0.8 mm.

Wiring diagram + Tutorial

Tutorial here

or here
