Original GroundStudio Product

Downloads:

Schematic and Layout

Product Description:

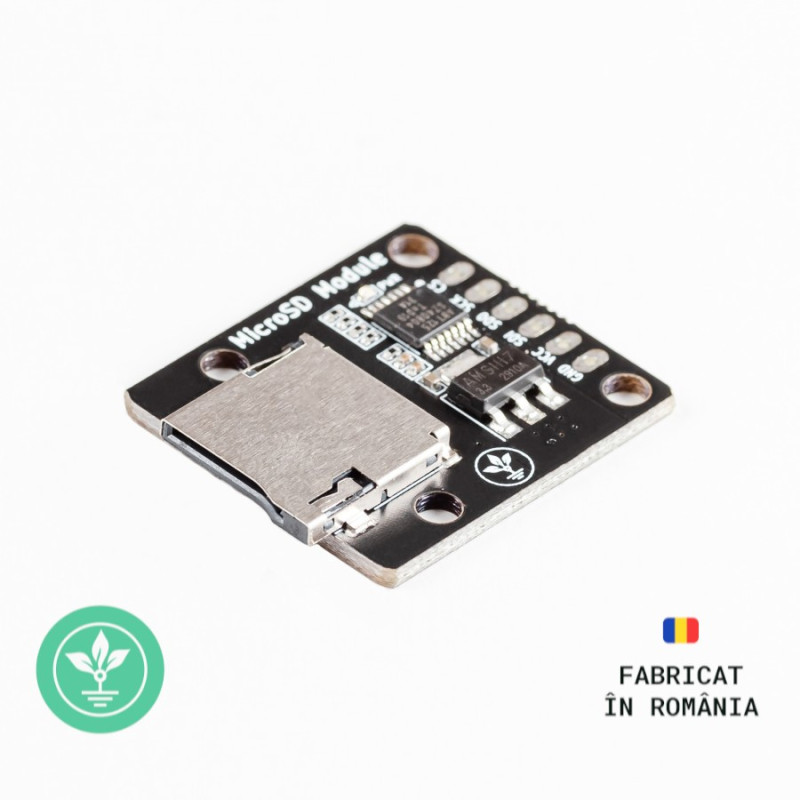

The module integrates a microSD adapter that allows you to connect a microSD card to a development board. It communicates using the SPI standard, making it easily compatible with most development boards available.

The 2.54mm pitch pins allow it to be connected using a breadboard or Dupont connector wires, depending on your preference.

The presence of power supply voltage is indicated by the "PWR" LED located on the module.

For applications where minimizing power consumption is desired, the "PWR" LED can be disabled using the "PWR LED DISABLE" jumper located on the back of the PCB.

Technical Specifications:

Supported microSD card sizes: 2GB ~ 32GB
Power supply voltage [VCC]: 5V DC
Communication protocol: SPI
Dimensions: 28.7mm x 25.4mm

Example 1 (ARDUINO): Testing with the GroundStudio Carbon V3 development board using the HSPI port

For this example, you will need the following:

1x Carbon V3 development board || Reference CYQGWW_GS
1x GroundStudio microSD Module || Reference QTYYYR_AAA
Various wires needed for electrical connections

Step 1 - Download Arduino IDE

Link: Arduino IDE

Before connecting the board, download Arduino IDE 1.8.x from the link above, based on your preferences and operating system.

Step 2 - Install USB Driver (CH340C)

On Windows 10 (with up-to-date updates), the driver installs automatically. The driver can also be installed manually (available in the "Downloads" section) and is compatible with older versions of Windows, but neither we nor Microsoft offer support for them.

After connecting the board, in the "Ports" section of "Device Manager," the port before and after installation will appear as shown below.

The driver installation time will vary depending on the operating system and PC specifications.

Step 3 - Perform necessary settings in Arduino IDE.

First, download a set of boards into Arduino IDE. After opening Arduino, go to File->Preferences, and in the "Additional Boards Manager URLs" section, add the following URL:

https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_dev_index.json

Click OK, then open "Tools"->"Board: ", and from the drop-down list, select the "Boards Manager..." button.

Search for "esp32," and the "esp32 by Espressif Systems" package will appear in the list. Click "Install" and wait for the installation to complete.

Next, go to "Tools"->"Board"->"ESP32 Arduino," where compatible Arduino ESP32 boards will be displayed. Select "ESP32 Dev Module" from the list.

From the Tools menu -> Port, select the port that appeared in Device Manager when connecting the board to the PC.

If you have multiple ports and are unsure which one is the Carbon V3, disconnect it momentarily and check the menu to see which disappears.

Step 4 - Make the connections and load the test code

Connect the development board and the microSD module:

Carbon V3 ______________ microSD
          5V ______________ VCC
         GND ______________ GND
          13 ______________ SDO
          12 ______________ SDI
          14 ______________ SCK
          15 ______________ CS

Copy and run the file "HSPI_SD_card_test.ino" from the link below in Arduino:

https://github.com/GroundStudio/GroundStudio_Carbon_V3/blob/main/Arduino/Examples/HSPI_SD_card_test/HSPI_SD_card_test.ino

After loading the code, open Serial Monitor and set the baud rate to 9600.

Press the reset button on the development board.

A .txt file will be generated on the card in the connected module containing the message "Hello V3," and Serial Monitor will display some information about the connected card.

Example 2 (ARDUINO): Testing with the GroundStudio Carbon D4 development board using the SPI port

For this example, you will need the following:

1x Carbon D4 development board || Reference LUMUHR_GS
1x GroundStudio microSD Module || Reference QTYYYR_AAA
Various wires needed for electrical connections

Steps 1-3 are identical to those in the previous example (Carbon V3)

Step 4 - Make the connections and load the test code

Connect the development board and the microSD module:

Carbon D4 ______________ microSD
          5V ______________ VCC
         GND ______________ GND
          23 ______________ SDO
          19 ______________ SDI
          18 ______________ SCK
           5 ______________ CS

Copy and run the file "CarbonD4_SD_card_test.ino" from the link below in Arduino:

https://github.com/GroundStudio/GroundStudio_Carbon_D4/blob/main/Arduino/Examples/CarbonD4_SD_card_test/CarbonD4_SD_card_test.ino

After loading the code, open Serial Monitor and set the baud rate to 9600.

Press the reset button on the development board.

A .txt file will be generated on the card in the connected module containing the message "Hello D4," and Serial Monitor will display some information about the connected card.

Package Contents:

1x GroundStudio microSD module

1x 1*6 male pin header

NOTE: The included pin headers are not soldered, and soldering services are not provided.

Certifications:

Open Source Hardware Association
