Square signal generator
  • Square signal generator

Square signal generator

XZKADD_555-module
lei6.75
Tax included
Quantity
28 Items

  We deliver to lockers!

Pick up your orders anytime, hassle-free!

  Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

  2-Year Warranty

Reliable products, worry-free!

  Easy 14-Day Returns

Unused items? No questions asked!

Description

Applications

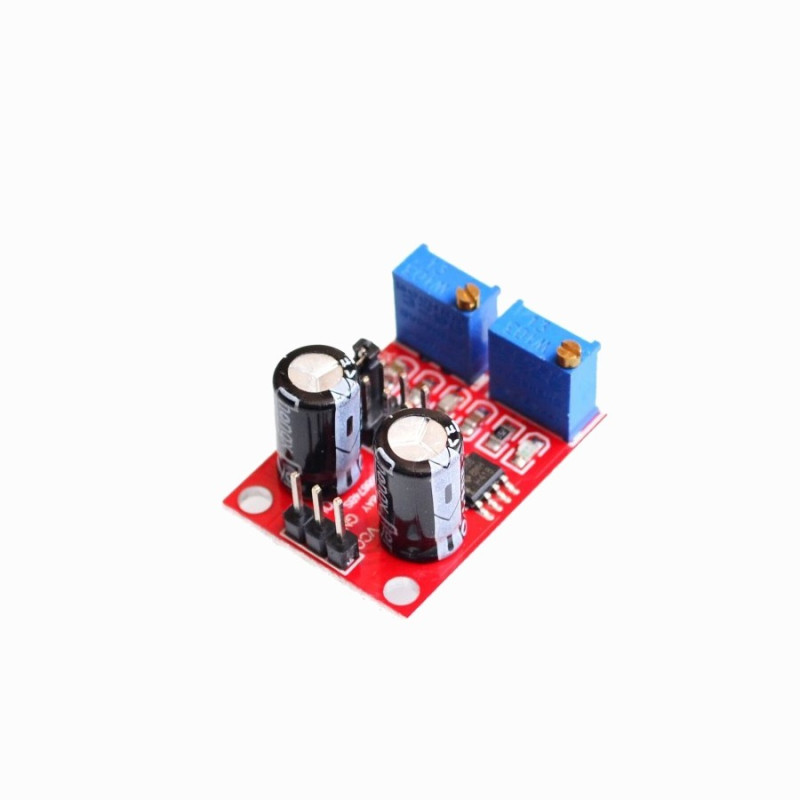

1. Used as a rectangular signal generator, it generates rectangular signal for experiments, development and use;
2. Used to generate rectangular signals acting on the step-by-step motor driver;
3. Generate adjustable pulse for use MCU;

Specifications


1. Chip: NE555;
2. Input voltage: 5V-15V DC. 5V, the output current may be about 15MA; Power supply 12V, output current can be about 35MA;
3. Input current: 100MA
4. Output Amplitude: 4.2V V-PP at 11.4V V-PP. (Depending on the input voltage, the output amplitude will be different)
5. Maximum output current: 15MA (5V power supply, V-PP more than 50%), 35MA (12V power supply, V-PP more than 50%)
6. Size: 3.1x2.2 cm

Pinout
