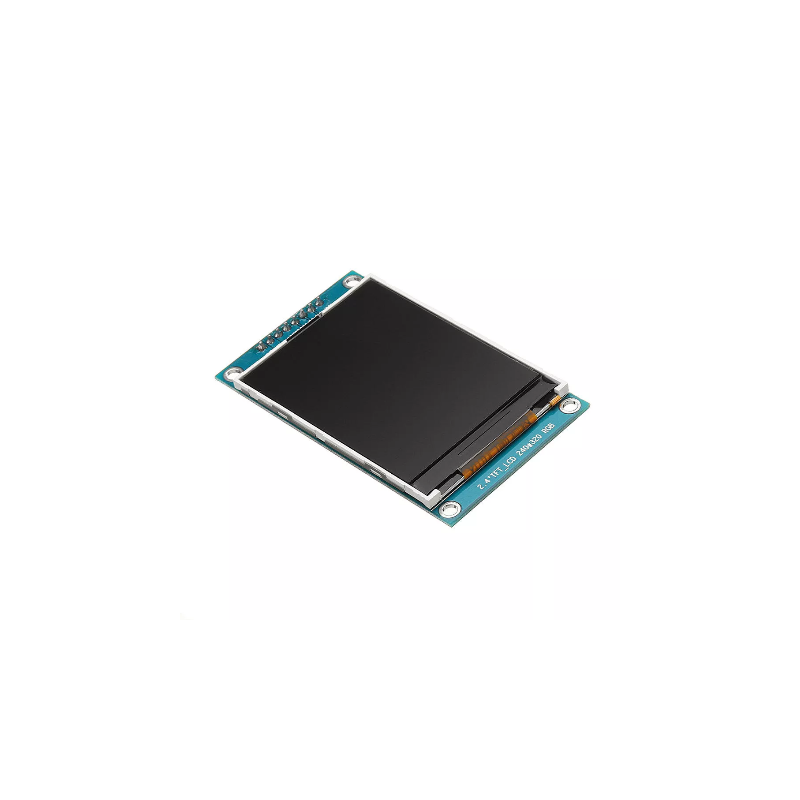

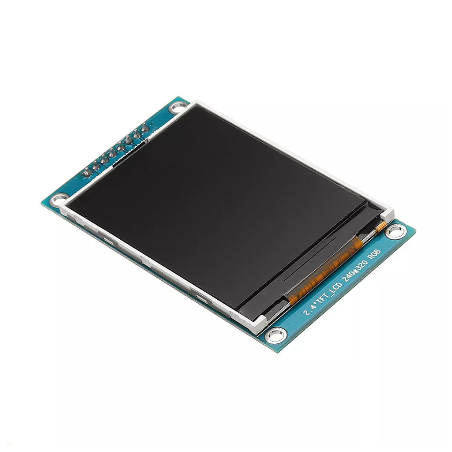

LCD 2.4'' SPI & Controller ILI9341 Module
We deliver to lockers!
Pick up your orders anytime, hassle-free!
Fast Delivery!
Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!
2-Year Warranty
Reliable products, worry-free!
Easy 14-Day Returns
Unused items? No questions asked!
Description
Specifications
- 2.4"
- 240x320 Pixels
- Interface: 4line SPI
- Controller IC: ILI9341
- TP Driver IC: XPT2046
- Resistive Touch
- Wide Temperature (-20C to +70C)
- 3.3V Power supply
Pinout
| No. | Symbol | Description |
| 1 | GND | Ground |
| 2 | VCC | Power supply for LCM(2.8V-3.3V) |
| 3 | CLK | Clock |
| 4 | MOSI | Data input |
| 5 | RES | Reset |
| 6 | DC | Data/commond select |
| 7 | BLK | Blacklight power input pin. No connection can work also. Active to low or connect to Ground to close backlight |
| 8 | MISO | Data output pin ,No connection if no need to read LCD info. Use to read touch signal in touch display |
| 9 | CS1 | LCD select |
| 10 | CS2 | Touch IC select |
| 11 | PEN | Touch interrupt pin |
Product Details
NYKHQE_lcd_2.4_spi
6427854019523
