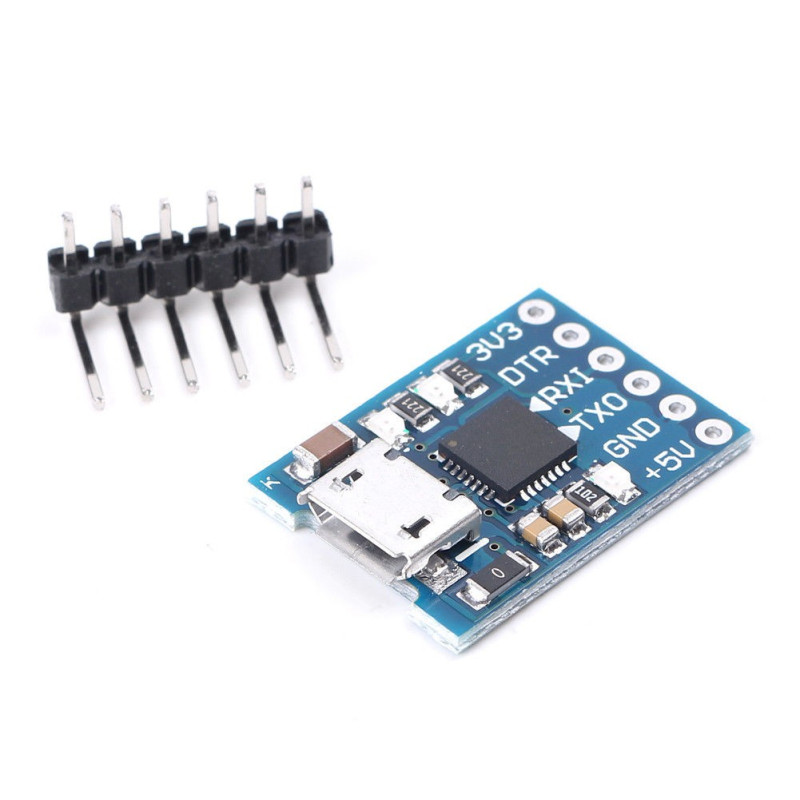

Micro USB CP2102 Breakout Module
Pick up your orders anytime, hassle-free!
Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!
Reliable products, worry-free!
Unused items? No questions asked!
Overview
The CP2102 USB/TTL represents a Breakout Board with Additional Signals which are not present in other similar Converters. This is a great little tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB bus via a standard type B female connector and will appear as a standard COM port.
Thes CP2102 doesn’t require any external oscillator, it has an on-board voltage regulator, and it even uses a re-programmable internal EEPROM for the device description. The full hardware UART has flow control for baud rates from 300bps to 921600bps. This breakout also allows you to connect the TX/RX pins of your favorite microcontroller or serial application to the RX/TX pins of the breakout, creating a simple serial cable replacement.
Specifications
- 3.3V and 5V power supply interface
- Implements full v2.0 USB protocol
- On board status indicator lights for RX and TX
- Internal 1024 Bytes EEPROM for device ID and Product Description strings
- Internal 640 Byte TX buffer
- Internal 576 Byte RX buffer
- Supports Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X & Linux 2.40
- Temperature Range: -40 to +85
- Standard USB type A male and TTL 6pin connector. 6pins for 3.3V, RST, TXD, RXD, GND & +5V
Reference: XNVELI_module-L298N
