Product Description

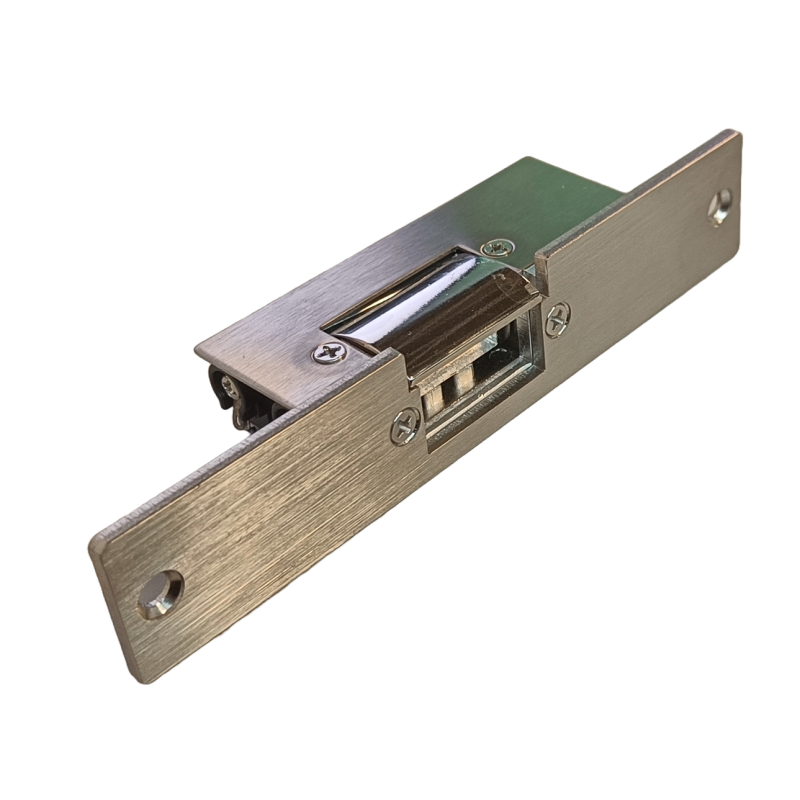

Flush-mount electric bolt lock, model 150A-NO, designed for access control systems on wooden, metal, or PVC doors. The NO (Normally Open) version is fail-secure: it remains locked when not powered and unlocks only when voltage is applied (POWER ON).
The electromagnetic design uses low-remanence materials for stable operation, while the compact body allows a discreet installation in the frame. It is compatible with access controllers, intercoms, exit buttons, and can provide status feedback through the signal wires.
Technical Details
- Model: 150A-NO
- Type: electric bolt lock (cathode lock), flush-mount installation
- Operating mode: NO — opens when powered (POWER ON)
- Supply voltage: 12 VDC (optional 24 VDC)
- Rated current (12 V, NO): ≈ 140 mA
- Body dimensions: 149 × 28 × 34 mm
- Signaling/feedback (wires):
- Yellow: public/common line
- Door closed: blue–yellow connected
- Door open: white–yellow connected
- Wiring notes:
- Includes a diode for surge protection (install in parallel across the coil, observing polarity).
- A stabilized power supply and adequately sized cable are recommended to avoid voltage drop.
Package Contents
- 150A-NO electric bolt lock (includes coil protection diode)
- Mounting screws and accessories
- Quick installation guide in English
