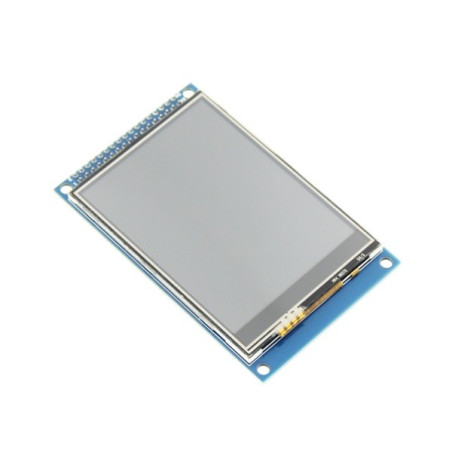

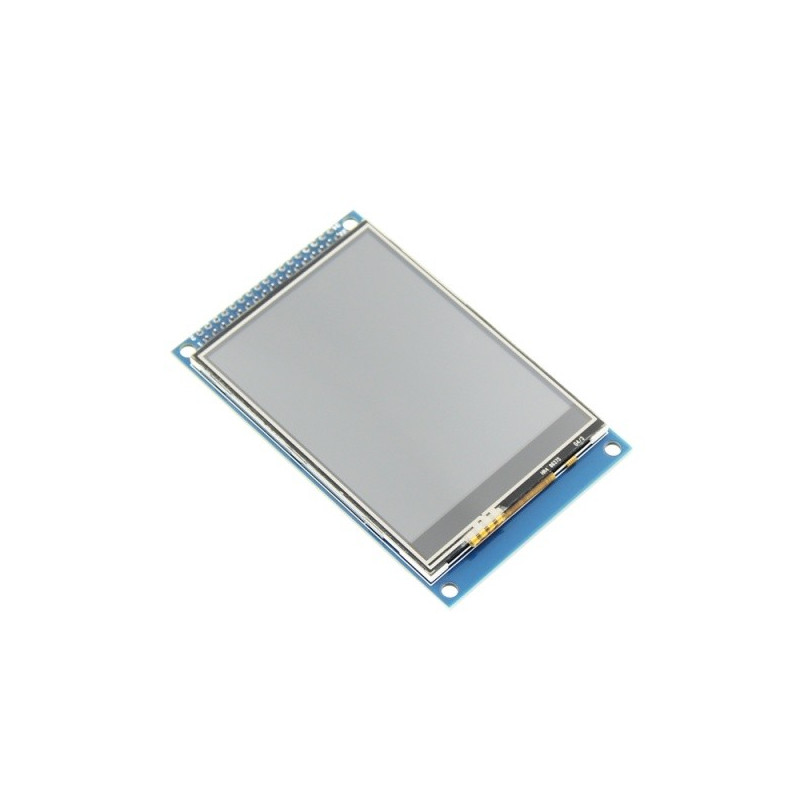

Display LCD TFT 3.2" 320x240 with touch for STM32
We deliver to lockers!
Pick up your orders anytime, hassle-free!
Fast Delivery!
Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!
2-Year Warranty
Reliable products, worry-free!
Easy 14-Day Returns
Unused items? No questions asked!
Description
Product Description
- 3.2-inch color screen, support 16BIT RGB 65K color display, display rich colors
- 240x320 resolution for clear display
- Support 8-bit/16-bit parallel bus switching (the default is 16-bit), fast transfer speed
- Supports ALIENTEK STM32 Mini, Elite, WarShip, Explorer, and Apollo development boards for direct plug-in use
- Support for touch function
- Support SD card function expansion
- Provides a rich sample program for STM32 and C51 platforms
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
Product Parameters
| Name | Parameter |
| Display Color | 16BIT RGB 65K color |
| SKU | MRB3205 |
| Screen Size | 3.2(inch) |
| Screen Type | TFT |
| Driver IC | ILI9341 |
| Resolution | 320*240 (Pixel) |
| Module Interface | 8Bit or 16Bit parallel interface |
| Active Area | 48.6x64.8 (mm) |
| Touch Screen Type | resistive touch screen |
| Touch IC | XPT2046 |
| Module PCB Size | 57.60x90.73 (mm) |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~70℃ |
| Operating Voltage | 3.3V/5V |
| Power Consumption | TBD |
| Product Weight | TBD |
For the full documentation, click HERE
Product Details
WVKTFX_MRB3205
6427854030504
14 Items
