Description

Overview

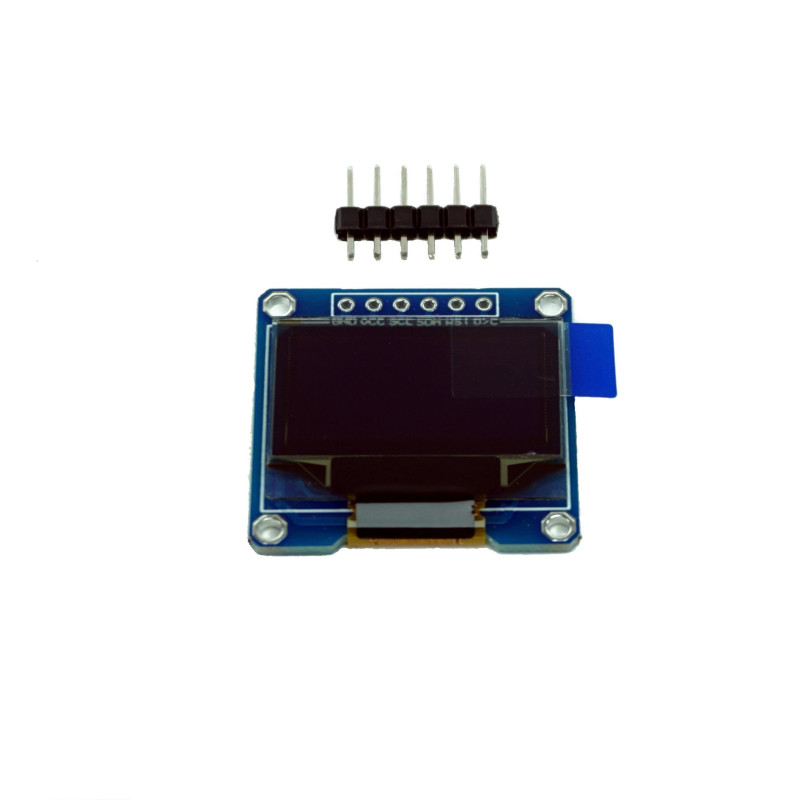

This is a small high contrast OLED graphics display with 128x64 pixels. Control of the display is via SPI.

Specifications

  • 128x64 pixels
  • SPI interface
  • 3.3V supply required
  • Board Size; 27mm (W) x 28mm (H)
  • Visual Area:  23.74 x 12.86mm
  • Active Area:  21.75(W) x 10.85(H) mm
  • Diagonal Size:  0.96“
  • Dot (Pixel) Pitch:  0.17x0.17mm
  • Display Driver:  SSD1306
  • Contrast Ratio(Typ):  2000:1
  • Viewing Angle Range:  Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree
  • Appearance:  White on Black
  • Brightness(Typ):  120cd/m2

Wiring

Here are the SPI connections for Arduino and Teensy based boards

  OLED -------- Arduino/Teensy

   GND -------- GND
   VCC -------- 3.3V
   SDA -------- D11(MOSI) (don't change)
   SCL -------- D13(SCK) (don't change)
   D/C -------- D9 (can be any digital pin)
   RES -------- D8 (can be any digital pin)
