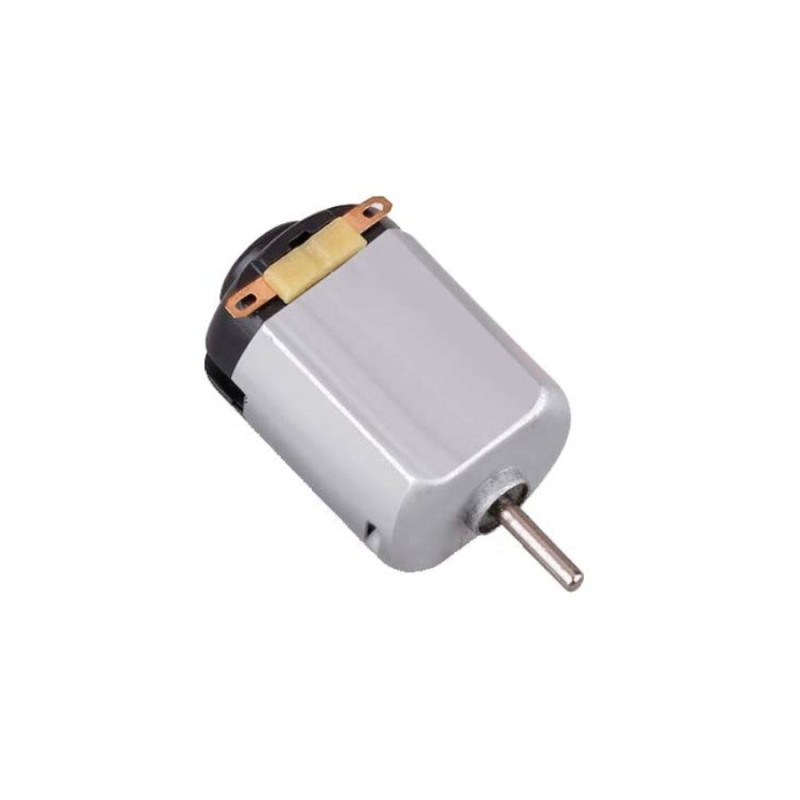

DC Motor - small

Product description

Compact DC motor for educational projects, small robots, fans, or simple mechanisms. It operates at 3–6 V (rated 6 V) and provides high speed in a small form factor. The shaft diameter is 2 mm (length ~8 mm), suitable for common micro-motor wheels and gears.

Technical details

• Supply range: 3–6 V DC (rated 6 V)
• Operating temperature: −10 °C … +60 °C
• No-load speed (6 V): 9100 ± 1800 rpm
• No-load current (6 V): ≤ 70 mA
• Loaded speed (6 V): 4500 ± 1500 rpm
• Load current (6 V): ≤ 250 mA
• Stall current: ≤ 500 mA
• Nominal torque: ~10 g·cm
• Starting torque: ~20 g·cm
• Starting voltage: ~2.0 V
• Body size: 27.5 × 20 × 15 mm
• Shaft: Ø2 mm × 8 mm
• Weight: ~17.5 g

Package contents

• 1 × 3–6 V DC mini motor
