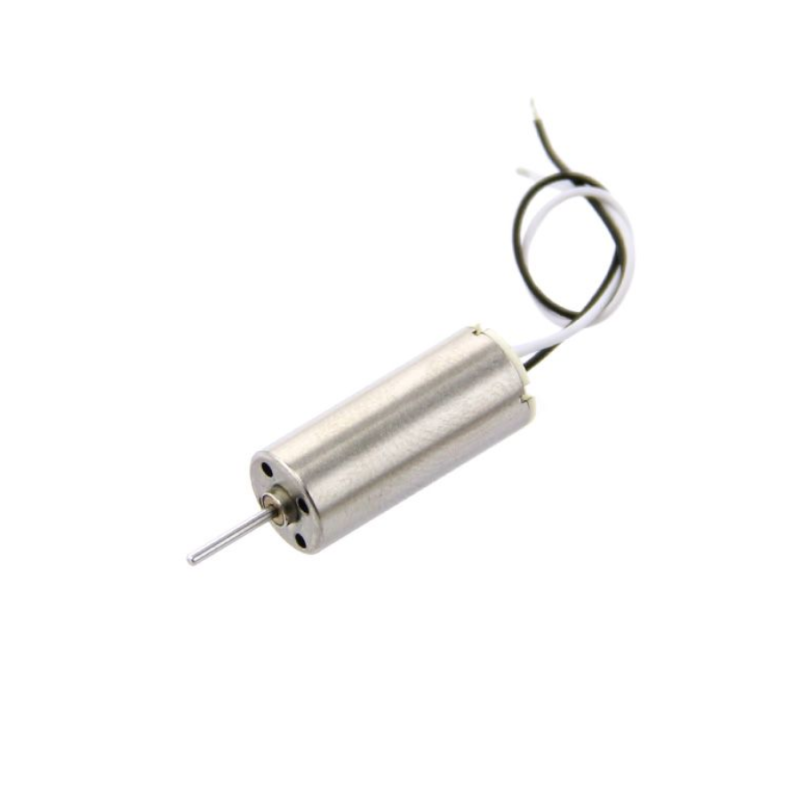

JS716 Coreless Motor

Overview

JS716 Coreless Motor is ideal for projects which involve model airplanes. It's a very small motor but can produce enough power than can enable high speed rotation up to 40 000 RPM . It is designed to work with one-cell LiPo batteries  with supply voltage of 3.7 V.

Specifications

• Voltage: 3.7 V
• Current consumption idle: 110mA
• Current consumption in jam: 1.54
• Number of revolutions per minute: 40000 RPM
• Shaft Diameter: 0.8 mm
• Shaft Length: 8 mm
• Cable Length: 80 mm and 0.5mm diameter;
• Weight: 2.56 g
• Dimensions: 7 mm x 16 mm
