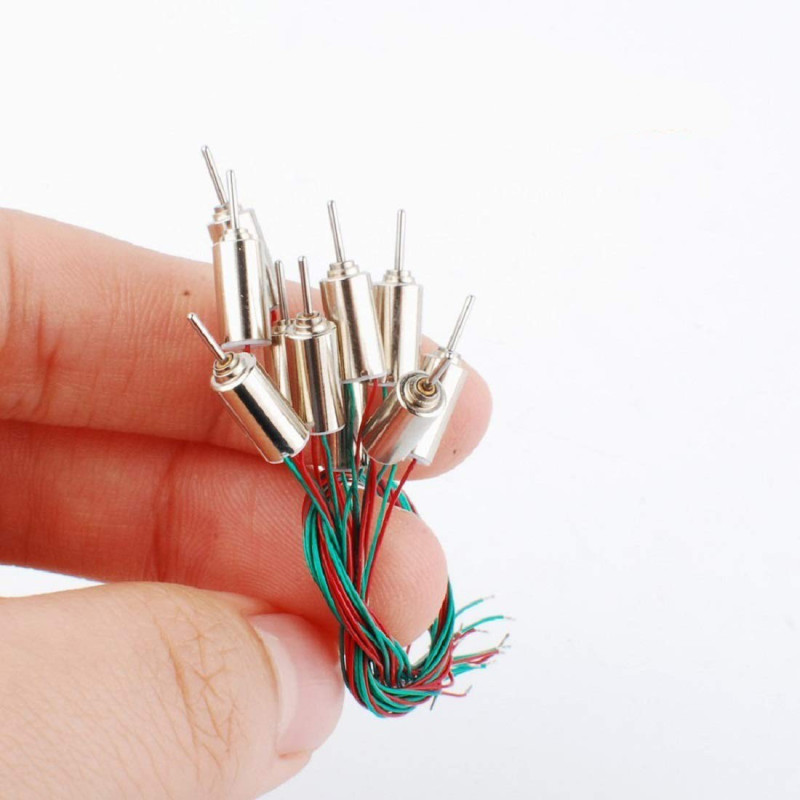

4x8 mm Mini Motor

Overview

This Coreless Motor is ideal for projects which involve model airplanes. It's a very small motor but can produce enough power than can enable high speed rotation up to 70 000 RPM . It is designed to work with a nominal voltage of 3V.

Specifications

Rated Voltage     DC 3V
Speed     70 000 RPM (no-load)
Current     0.12A
Locked Rotor     0.95A
No-load Current     0.04A
Motor Size     4 x 8 mm
Power Cable Length     5 cm
Output Shaft Diameter     0.7 mm
Output Shaft Length     5 mm
Main Color     Silver Tone
Material     Metal
Weight     6g
