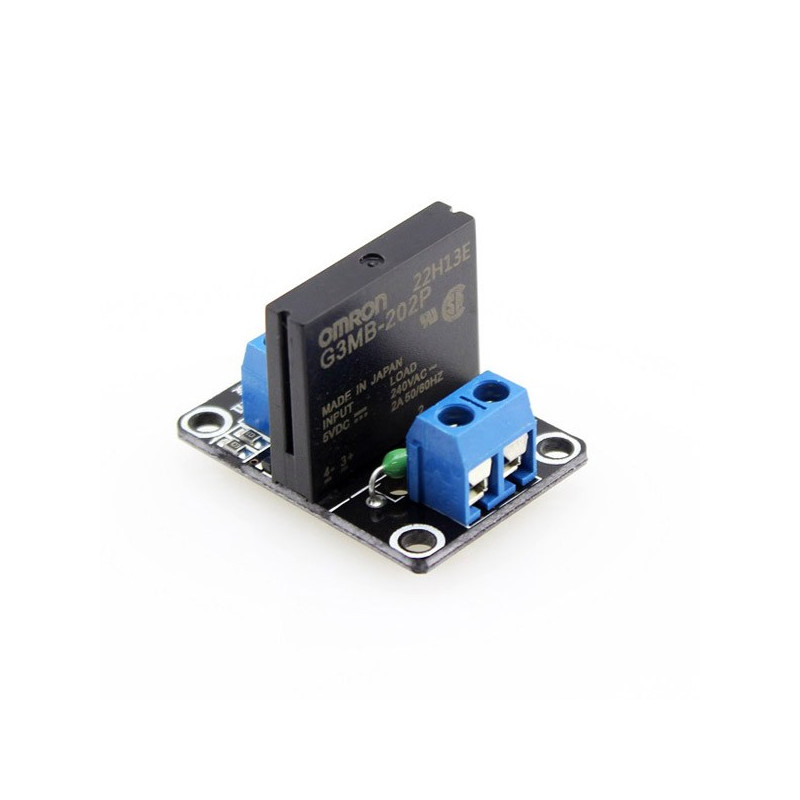

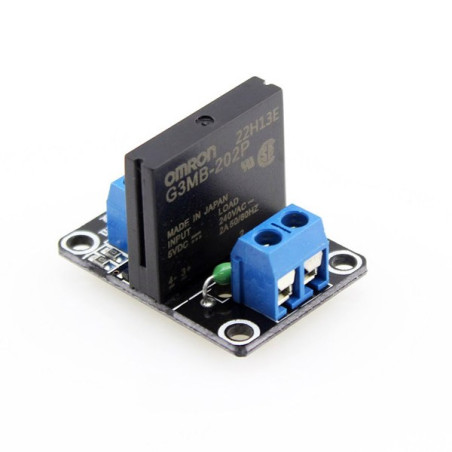

Solid State Relay 1 channel
  • Solid State Relay 1 channel

Solid State Relay 1 channel

LAVVIR_SSrelay1
lei17.56
lei13.17 Save 25%
Tax included
Quantity
16 Items

  We deliver to lockers!

Pick up your orders anytime, hassle-free!

  Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

  2-Year Warranty

Reliable products, worry-free!

  Easy 14-Day Returns

Unused items? No questions asked!

Description

Specifications (per channel):


Load voltage range: 75 to 264VAC (50/60Hz).
Load current: 0.1 to 2 AMP.
Power supply:5VDC / 160mA .
Input control signal voltage:
0V - 0.5V Low stage (SSR is OFF),
0.5V – 2.5V (unknown state).
2.5V - 20V High state (SSR is ON).
Size: 138 x 71 x 25 mm ( L*W*H).
SSR Spec.:
Manufacturer: OMRON
Part number: G3MB-202P, 5V version.
Isolation: Phototriac.
Zero cross: Yes.
Rated output load: 2A at 100 to 240VAC.(50/60Hz).
Load type: General purpose.

Product Details
LAVVIR_SSrelay1
6427854015761
16 Items
