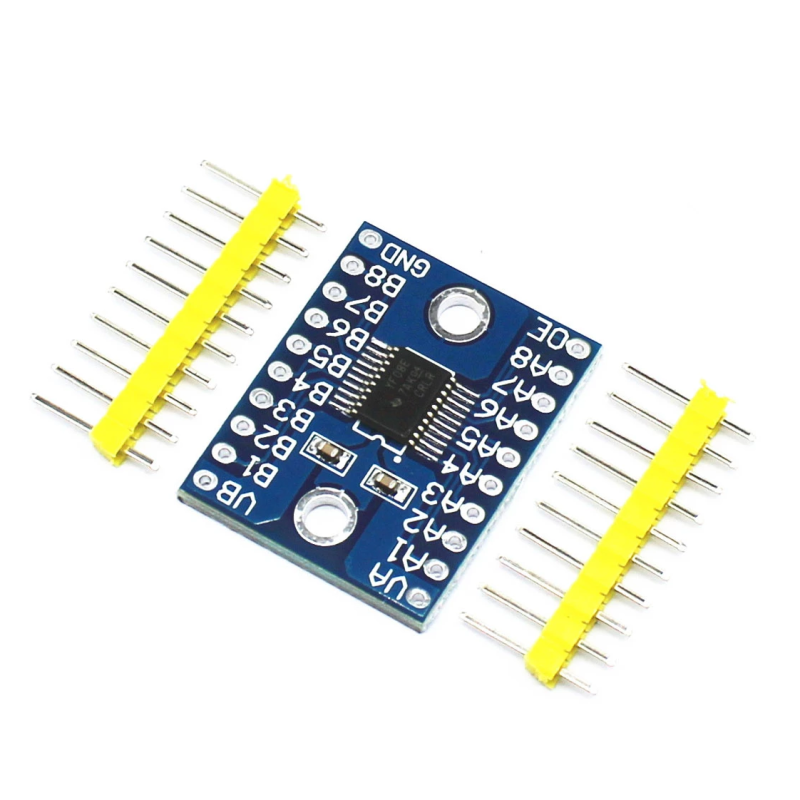

Logic level converter - 8 ch
We deliver to lockers!
Pick up your orders anytime, hassle-free!
Fast Delivery!
Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!
2-Year Warranty
Reliable products, worry-free!
Easy 14-Day Returns
Unused items? No questions asked!
Description
Overview
This product is a bidirectional logic level translator. In electronics there are many voltages that express logic voltages, such as 1.8V, 2.5V, 3.3V or 5V. Often, we have to make communication between devices that operate at different voltages, which is not possible without specialized devices.
With this product you can connect devices that work at different voltages. Most of the time, the necessary connections are between development pads, microcontrollers, sensors or bluetooth / wifi modules that work at 3.3V or 5V.
Specifications
Recommended supply voltage port A: 1.4V - 3.6V;
Recommended supply voltage port B: 1.65V - 5.5V;
Maximum current / channel: 50mA;
Maximum current through VCCA / VCCB: 100mA;
Maximum push-pull transfer speed: 110 Mbps;
Max Open Transfer Rate for Open Drain: 1.2 Mbps;
Note: VCCA <VCCB;
Dimensions: 26 x 16 x 3 mm;
Wiring
Tutorial
https://www.artekit.eu/using-logic-level-converters/
Datasheet
Product Details
UEJXQM_LGC-8ch
6427854027399
