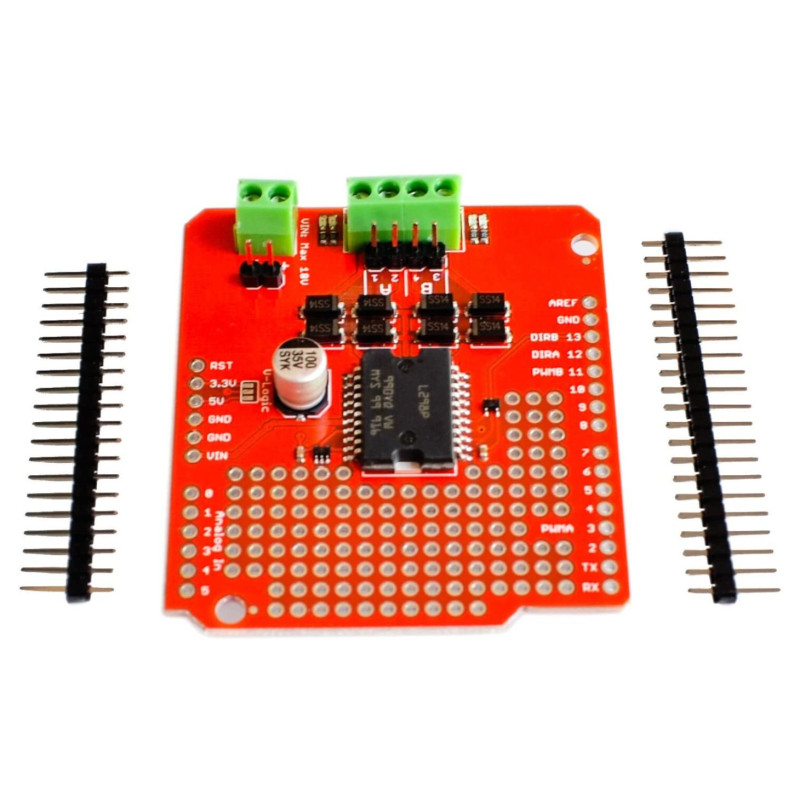

Ardumoto L298P Motor Shield
We deliver to lockers!
Pick up your orders anytime, hassle-free!
Fast Delivery!
Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!
2-Year Warranty
Reliable products, worry-free!
Easy 14-Day Returns
Unused items? No questions asked!
Description
Overview
The new version of this shield allows for either 3.3 or 5v logic, a separate and more robust VIN connection, and the PWM input has moved to pin 3.
This is a motor shield for Arduino that will control two DC motors. Based on the L298 H-bridge, the Ardumoto can drive up to 2 amps per channel. The board takes its power from the same Vin line as the Arduino board, includes blue and yellow LEDs to indicate active direction.
Control for motor attached to OUT1/2 is connected to digital line 12 (direction A) and digital line 3 (PWM A).
Control for motor attached to OUT3/4 is connected to digital line 13 (direction B) and digital line 11 (PWM B)
Specifications
Type: Logic ICs
Supply Voltage: 3.3 or 5 V
Operating temperature: -30-85°C
Customized: yes
Model Numer: L298P
LED Number: 2(blue and yellow)
Maximum current per channel: 2 A
Product Details
EJRJCF_L298P-proto-shield
6427854008015
