4x7 segment led display

Name: 4x7 segment led display
Brand: ArduShop
SKU: AQORVJ_4x7-led
Price: 6.1 RON
Availability: InStock

Reference AQORVJ_4x7-led

4x7 segment led display

lei6.10

Tax included

Quantity

In stock: 58 Items

We deliver to lockers!

Pick up your orders anytime, hassle-free!

Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

2-Year Warranty

Reliable products, worry-free!

Easy 14-Day Returns

Unused items? No questions asked!

Description
Product Details

Description

Description:

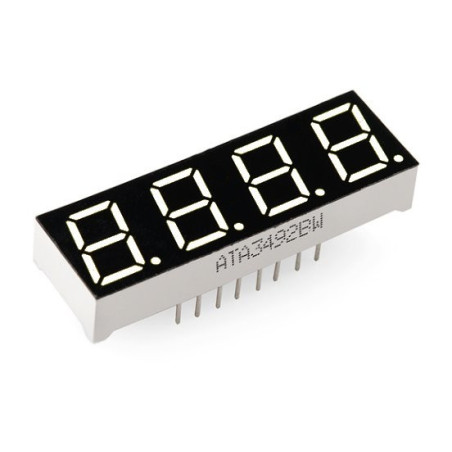

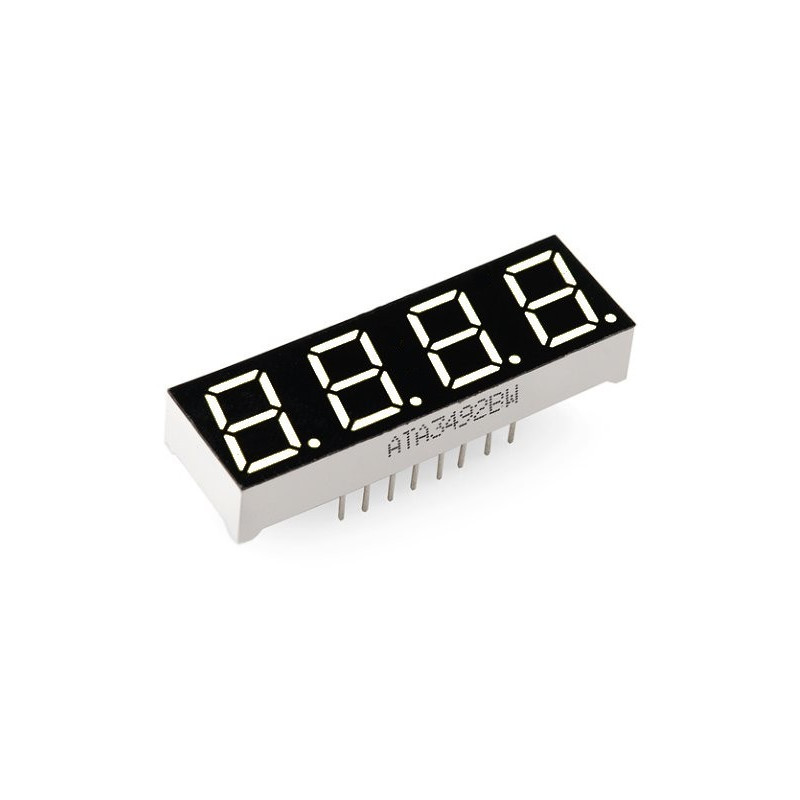

The 4-digit red LED display module, each with 7 segments, is useful in electronic assemblies where digits must be displayed. Being 4 digits is useful for displaying time or timer.
The module has a common connection for each digit of the LED anode.

Specifications:

LED voltage drops: 2V - 2.2V;
Recommended voltage drop on LED: 2.1V;
Current Current: 20mA;
Wavelength: 640nm;
Operating temperature: -25 ° C to + 85 ° C;
Light intensity: 55mcd.

Dimensions: 50mm x 19mm x 5mm

Package Included:

1 x Display LED 4x7 Segments

Practical example:

Instructions and Practical Example: http://nicuflorica.blogspot.ro/2013/07/afisaje-led-cu-7-segmente-si-arduino-ii.html

Product Details

Reference AQORVJ_4x7-led

EAN13 6427854003300

In stock 58 Items
