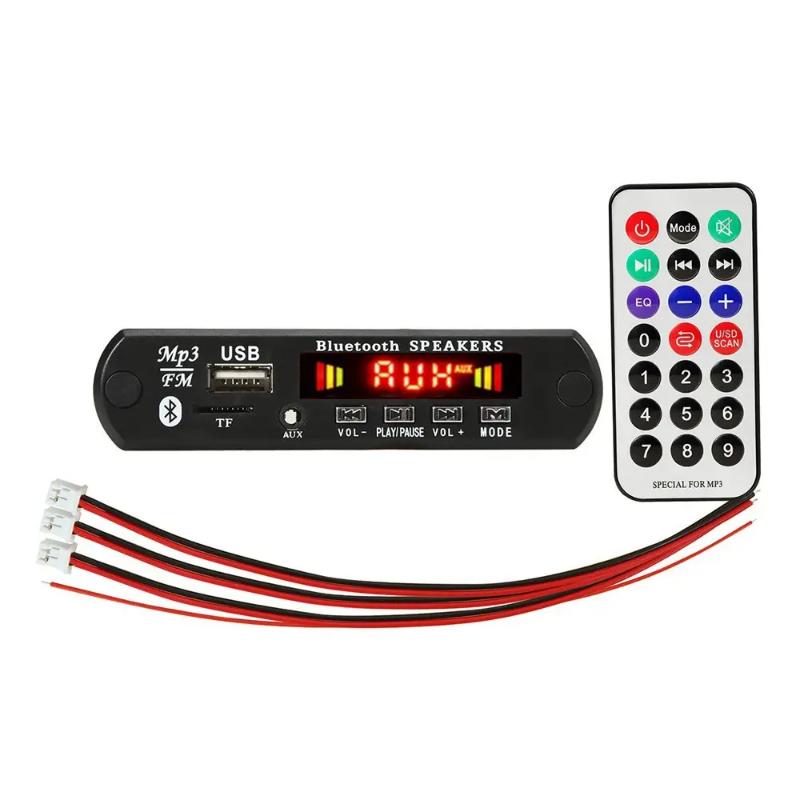

Bluetooth 5.0 MP3 Player Music Wireless Receiver Audio Decoder Board USB TF FM Radio MP3 Module Decoding For Car Accessories DIY

Product Description:

A simple kit that lets you play audio through your car radio. It can decode audio streamed via Bluetooth from your phone, or receive FM radio broadcasts (an antenna wire is required for FM reception; not included).

Technical Specifications:

• Supply voltage: 12V DC (automotive system; typical range 9–15V)
• Required current: ~500 mA (depends on volume and active modes)
• Operating temperature: −20°C to 60°C

Features:

• dual decode; supports MP3 / WMA / WAV / APE (lossless);
• Bluetooth 5.0 playback/control;
• digital tube display (bright character display);
• supports MMC / SD / USB drive and other memory cards; USB interface;
• power-loss resume (memory) function;
• IR remote control, typical range 5–10 m;
• external audio input via LINE IN (AUX);
• FM radio, reception band 87.5 MHz – 108.0 MHz;
• button controls: VOL− / AUTO / VOL+ / MODE.

Button Functions:

1. VOL− (previous track / volume down)
   MP3 mode: short press – previous track; long press – decrease volume.
   FM mode: short press – step to the previous frequency.
2. AUTO (play / pause)
   MP3 mode: short press – play/pause.
   FM mode: short press – auto scan and save station.
   Bluetooth mode: short press – play/pause.
3. VOL+ (next track / volume up)
   MP3 mode: short press – next track; long press – increase volume.
   FM mode: short press – step to the next frequency.
   Bluetooth mode: short press – next track; long press – adjust volume.
4. MODE – switch between USB / FM / AUX / Bluetooth.

Conținutul coletului:

• 1x modul player FM/Bluetooth cu USB / TF / AUX
• 1x telecomandă IR
• 1x cablu alimentare 12V (2 fire: roșu/negru)
• 1x cablu pentru difuzoare (3 fire: L / R / GND)
