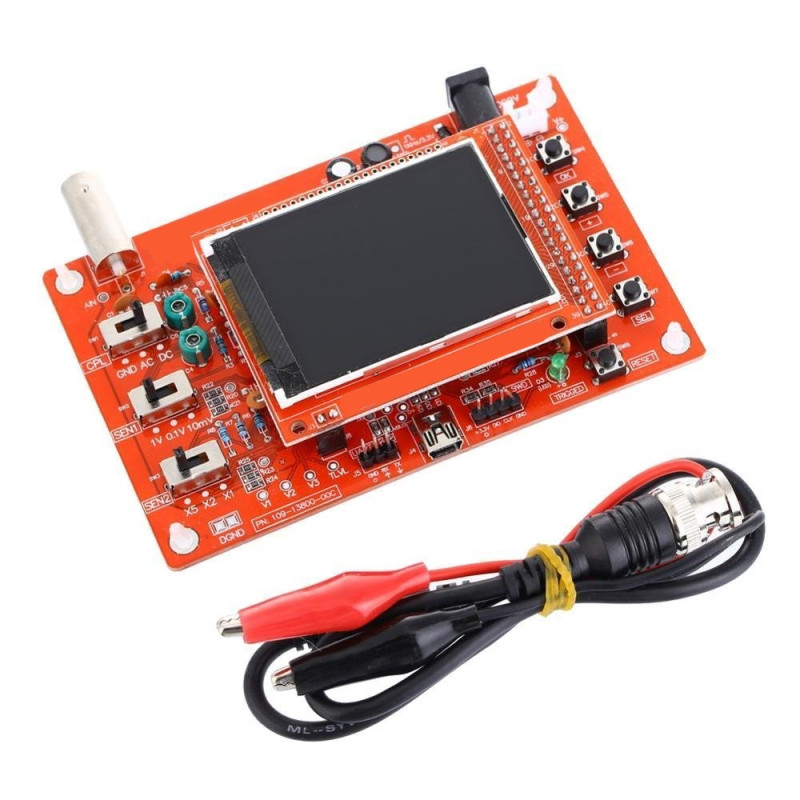

Osciloscop DSO138

Descriere

Acesta este un osciloscop dedicat studentilor/incepatorilor.

Are un generator de semnal/voltaj inclus care poate fi folosit atat pentru calibrare cat si pentru diverse teste.

Foloseste un microcontroller ARM Cortex-M3 (STM32F103C8) si are un display color 2.4" TFT.

Specificatii tehnice:

Maximum real-time sampling rate : 1Msps
Accuracy : 12Bit
Sampling buffer depth : 1024 bytes
Analog bandwidth : 0 - 200KHz
Vertical Sensitivity : 10mV / Div - 5V / Div ( 1-2-5 progressive manner )
Adjustable vertical displacement , and with instructions
Input impedance : 1M
Maximum input voltage : 50Vpp (1: 1 probe ), 400Vpp (10: 1 probe )
Coupling modes include DC / AC / GND
The horizontal time base range : 10μs / Div - 50s / Div ( 1-2-5 progressive manner )
With automatic, regular and one-shot mode , easy to capture the moment waveform
Available rising or falling edge trigger
Adjustable trigger level position , and with instructions
Observable trigger waveform before ( negative delay )
Can freeze at any time waveform display (HOLD function )
Comes 1Hz /3.3V square wave test signal source

Continut:

1 x osciloscop lipit si asamblat

1 x sonda crocodil

1 x manual utilizare
