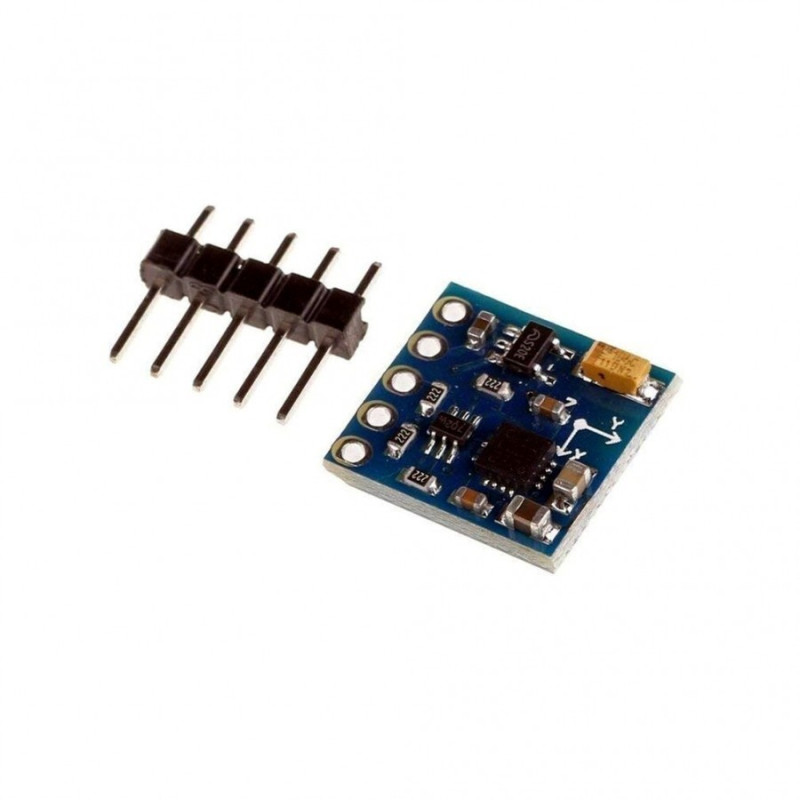

3 axes magnetic field sensor HMC5883 GY-271
3 axes magnetometer, I2C
We deliver to lockers!
Pick up your orders anytime, hassle-free!
Fast Delivery!
Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!
2-Year Warranty
Reliable products, worry-free!
Easy 14-Day Returns
Unused items? No questions asked!
Description
Overview
The sensor is small and can communicate on the I2C bus, so you only need two connections to communicate with a microcontroller.
The module decomposes the infusion on the two axes and so you can use it as a compass.
Specifications
Voltage: 3V - 5V (limit switch included);
Current: 740uA;
Measures between -8 and +8 Gauss;
Includes 12-bit ADC;
Output rate: maximum 116Hz;
I2C communication at maximum 400kHz;
Dimensions: 19 x 14 x 2mm.
PIN Config:
1. VCC: 3V-5V DC
2. GND: ground
3. SCL: analog input (A5)
4. SDA: analog input (A4)
5. DRDY: not connected
Datasheet & Tutorial
http://www.robotpark.com/image/data/PRO/91457/GY_271_ELECTRONIC_COMPASS.pdf
