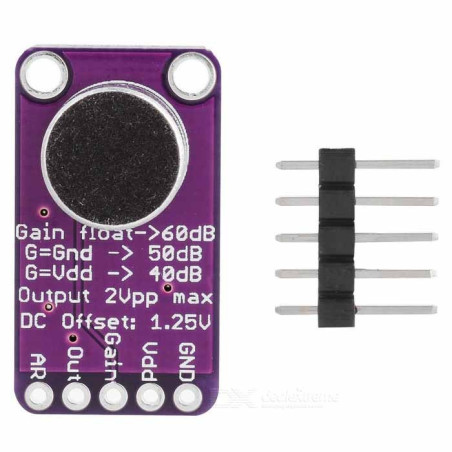

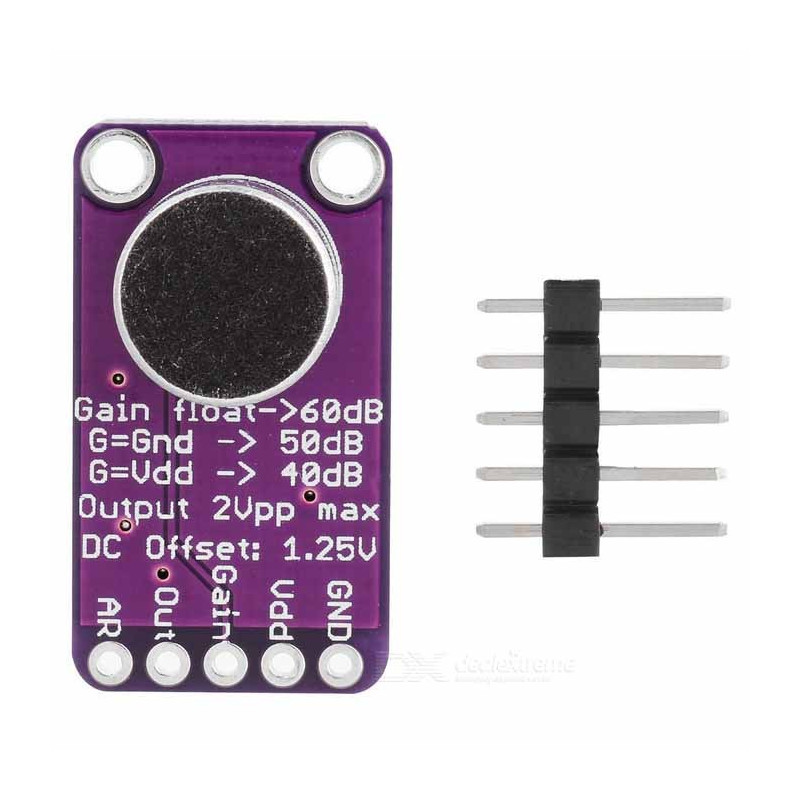

Microphone amplifier module MAX9814

Name: Microphone amplifier module MAX9814
Brand: ArduShop
SKU: FIJROD_MAX9814
Price: 24.9 RON
Availability: InStock

Reference FIJROD_MAX9814

lei24.90

Tax included

Quantity

Last items in stock

In stock: 1 Item

We deliver to lockers!

Pick up your orders anytime, hassle-free!

Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

2-Year Warranty

Reliable products, worry-free!

Easy 14-Day Returns

Unused items? No questions asked!

Description
Product Details

Description

Descriere

Acest modul amplifica semnalul dat de un microfon electret. Circuitul integrat conține un sistem de automatic gain control, dar are și un gain selectabil la valorile de 40dB, 50 dB sau 60dB. Modulul conține un circuit integrat MAX9814.

Produsul este util în aplicațiile dumneavoastră în care aveți nevoie să amplificați un semnal dat de un microfon, având totul inclus pe o plăcuță PCB, inclusiv microfonul. Produsul este perfect pentru a-l folosi împreună cu microcontrollere sau plăcuțe Arduino.

Caracteristici tehnice:

Automatic Gain Control;
Câștig de 40dB, 50dB sau 60dB;
Tensiune de alimentare: 2.7V - 5.5V;
Curent maxim consumat: 6mA;
Frecvență de răspuns: 20Hz - 20kHz;
THD: 0.04%;
Densitate de zgomot de 30nV/sqrt(Hz).

Continutul pachetului:

1x Modul Amplificator Microfon cu AGC MAX9814

Product Details

Reference FIJROD_MAX9814

EAN13 6427854009111

In stock 1 Item
