Description

Overview

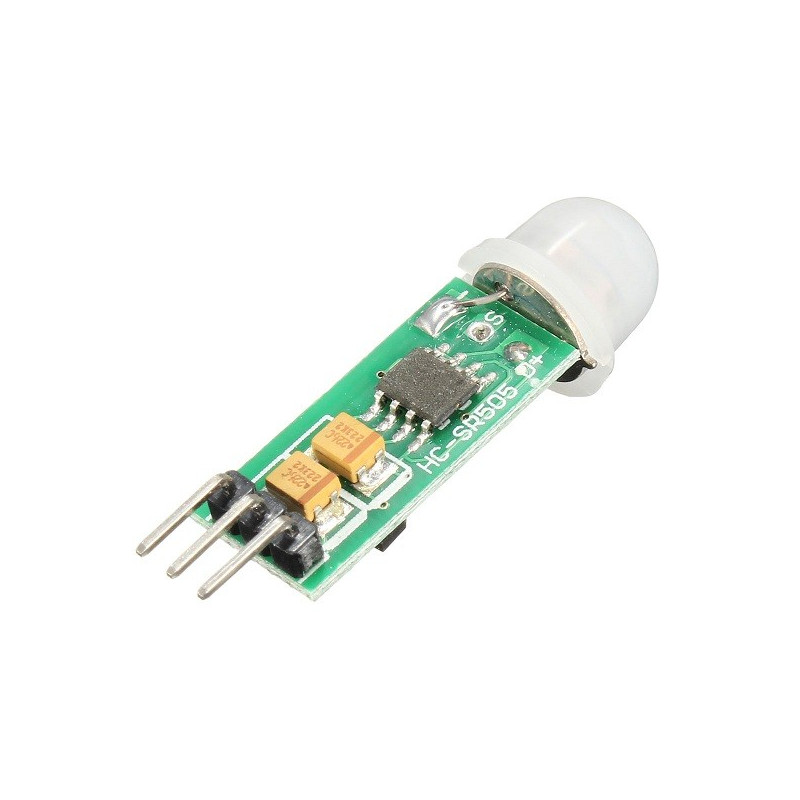

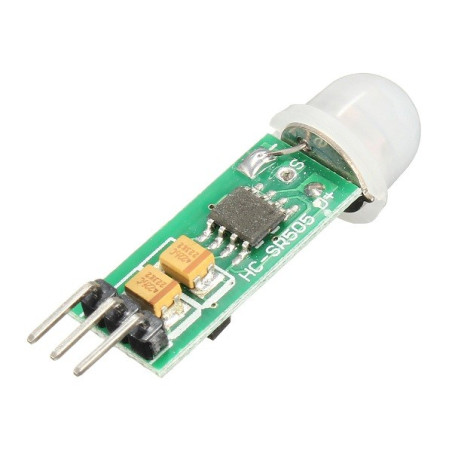

HC-SR505 Mini PIR Motion Sensor is based on infrared technology and it can automatic control by itself with high sensitivity and high reliability. Because of the minimum size and low-power operation mode, it widely used in various of automatic electronic equipment, especially battery-powered automatic products.

Applications:

Body induction lamps
Body sensors toys
Security Products
Industrial automation and control
Auto-sensing of electrical equipment
Battery-powered automatic control

Specifications

Operating voltage range: DC4.5-20V
Quiescent Current: <60uA
Trigger: reusable trigger (default)
Delay Time: The default 8S + -30%
Board Dimensions: 10 * 23mm
Induction angle: <100 degrees cone angle
Sensing distance: 3 meters
Working temperature: -20 to +80 degrees
Sensor Lens Dimensions: Diameter: 10mm

Product Details
CRLFKD_hc-sr505
6427854005922
