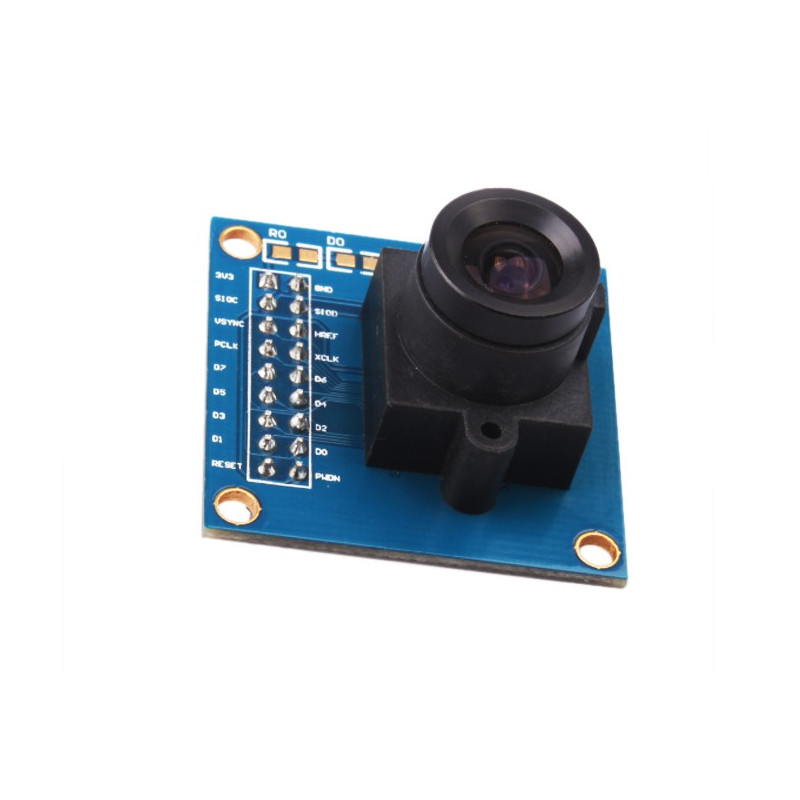

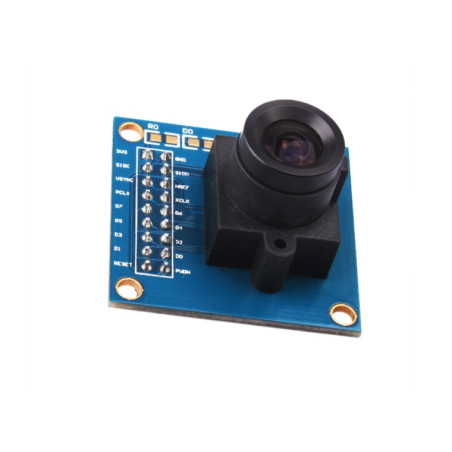

VGA camera module 640x480 OV7670

Product details:

The camera module is powered from a single +3.3V power supply. An external oscillator provide the clock source for camera module XCLK pin. With proper configuration to the camera internal registers via I2C bus, then the camera supply pixel clock (PCLK) and camera data back to the host with synchronize signal like HREF and VSYNC. The OV7670 camera module is a low cost 0.3 mega pixel CMOS color camera module, it can output 640x480 VGA resolution image at 30fps. The OV7670 camera module build in onboard LDO regulator only single 3.3V power needed and can be used in Arduino, STM32,Chipkit, ARM, DSP , FPGA and etc.

Specification:

Optical size 1/6 inch
Resolution 640x480 VGA
Onboard regulator, only single 3.3V supply needed
Mounted with high quality F1.8 / 6mm lens
High sensitivity for low-light operation
VarioPixel® method for sub-sampling
Automatic image control functions including: Automatic
Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic
Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)
Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming
ISP includes noise reduction and defect correction
Supports LED and flash strobe mode
Supports scaling
Lens shading correction
Flicker (50/60 Hz) auto detection
Saturation level auto adjust (UV adjust)
Edge enhancement level auto adjust
De-noise level auto adjust

Package included:

1 x VGA camera module
