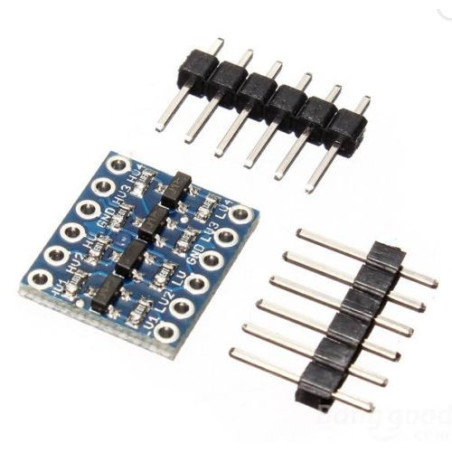

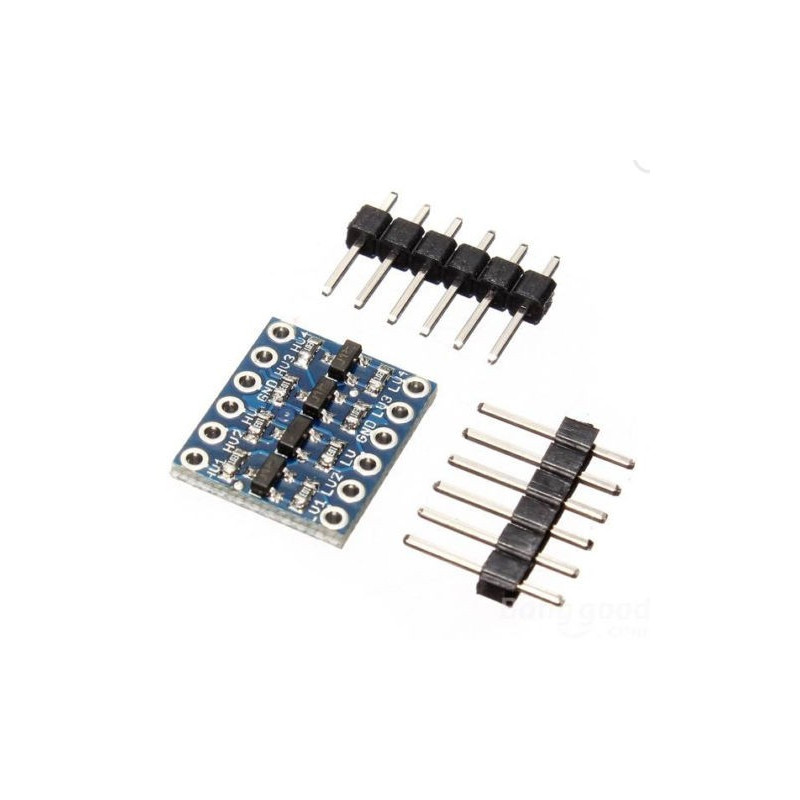

4 channel I2C bidirectional level conversion module 5V to 3V
  • 4 channel I2C bidirectional level conversion module 5V to 3V

4 channel I2C bidirectional level conversion module 5V to 3V

NYTCGM_I2C-5V-3V
I2C logic level converter
lei3.86
Tax included
Quantity
18 Items

  We deliver to lockers!

Pick up your orders anytime, hassle-free!

  Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

  2-Year Warranty

Reliable products, worry-free!

  Easy 14-Day Returns

Unused items? No questions asked!

Description

Description:

This product represents a bidirectional logic level translator. in electronics there are many tensions that express logical voltages such as 1.8V, 2.5V, 3.3V or 5V. Very often, we have to perform communication between devices operating at different voltages, which is not possible without the help of this product can specializate.Cu devices connecting devices operating at different voltages. Most times, connections are needed between development boards, microcontrollers, sensors or modules bluetooth / wifi operates at 3.3V or 5V that.


Specifications:

A recommended port supply voltage: 1.4V - 3.6V;
Recommended B port supply voltage: 1.65V - 5.5V;
Current / channel: 50mA;
Maximum current through VCCA / VCCB: 100mA;
The maximum transfer speed for push pull: 110 Mbps;
The maximum transfer speed for open drain: 1.2 Mbps;
Note: VCCA <VCCB.
Dimensions: 26 x 16 x 3 mm.


Package Included:

1 x I2C logic level converter


Practical example:

Tutorial to install and use the module you can find in the link below: https://www.youtube.com/watch?v=M3qDzjT9eNU

Pinout:

Product Details
NYTCGM_I2C-5V-3V
6427854019547
18 Items
