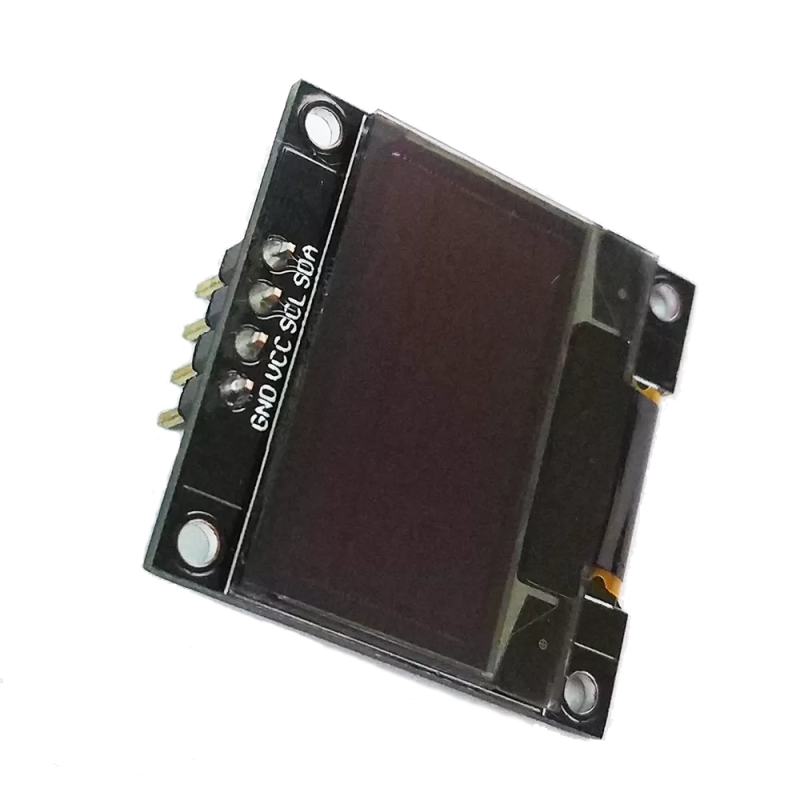

Display OLED 0.96" I2C White JMD0.96D-1
  • Display OLED 0.96" I2C White JMD0.96D-1

Display OLED 0.96" I2C White JMD0.96D-1

UQYYWE_oled_i2c_white
lei20.99
Tax included
Quantity
Out-of-Stock

  We deliver to lockers!

Pick up your orders anytime, hassle-free!

  Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

  2-Year Warranty

Reliable products, worry-free!

  Easy 14-Day Returns

Unused items? No questions asked!

Description

Product Description:

0.96-inch white OLED display, compatible with Arduino.

Ideal for small projects due to its I2C communication interface.

This display does not require backlighting, as the OLED pixels provide the illumination.

Technical Specifications:

  • High resolution: 128x64
  • Viewing angle: >160°
  • Ultra-low power consumption: 0.08W
  • Supply voltage: DC 3.3V/5V
  • Operating temperature: -30 ~70°C
  • Dimensions (mm): 26 x 26 x 3.8
  • Active display area: 22mm x 11mm
  • Communication protocol: I2C
  • Direct I/O compatibility with 3.3V and 5V microcontrollers (direct compatibility, no converters needed)
  • Chip: SSD1306
  • Text/graphic color: Blue
  • Background color: Black

Pin Description:

GND: Ground
VCC: 3.3V/5V power supply
SCL: I2C clock
SDA: I2C data

Connection Example:

To complete this example, you will need the following:

  1. UNO development board
  2. 0.96" OLED display I2C
  3. Wires and connectors


Example code for connection with Arduino UNO is available in the DOWNLOADS section.

Package Contents:

1x piece 0.96" White OLED Display I2C JMD0.96D-1
