OLED display 128x64 - 0.96"

Overview

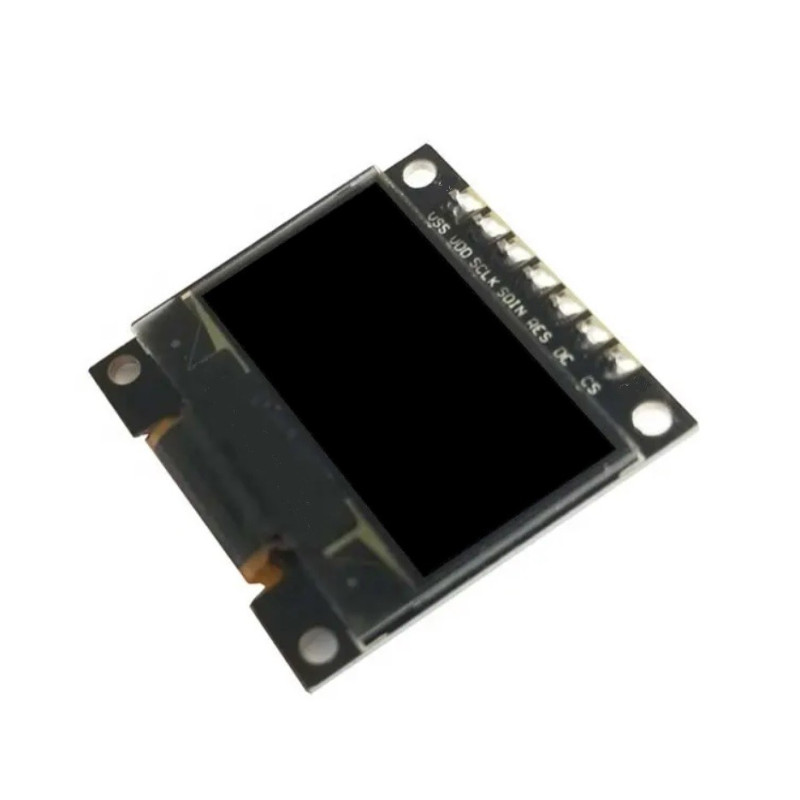

This is a small high contrast OLED graphics display with 128x64 pixels. Control of the display is via SPI.

Specifications

• 128x64 pixels
• SPI interface
• 3.3V supply required
• Board Size; 27mm (W) x 28mm (H)
• Visual Area:  23.74 x 12.86mm
• Active Area:  21.75(W) x 10.85(H) mm
• Diagonal Size:  0.96“
• Dot (Pixel) Pitch:  0.17x0.17mm
• Display Driver:  SSD1306
• Contrast Ratio(Typ):  2000:1
• Viewing Angle Range:  Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree
• Appearance:  White on Black
• Brightness(Typ):  120cd/m2

Wiring

Here are the SPI connections for Arduino and Teensy based boards

  OLED -------- Arduino/Teensy

   GND -------- GND
   VCC -------- 3.3V
   SDA -------- D11(MOSI) (don't change)
   SCL -------- D13(SCK) (don't change)
   D/C -------- D9 (can be any digital pin)
   RES -------- D8 (can be any digital pin)
