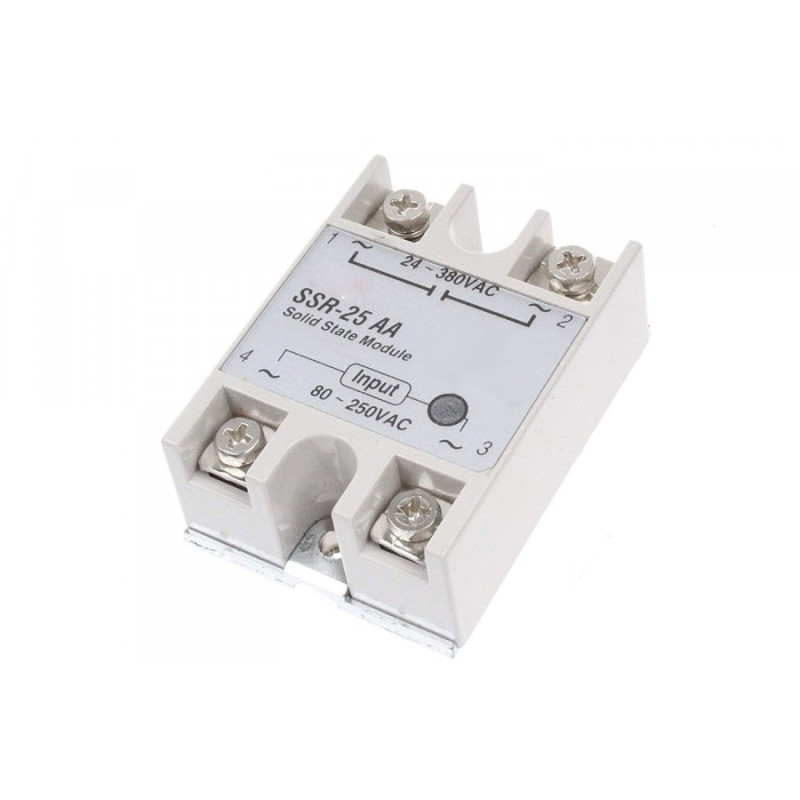

Solid State Relay 25A-90A AA
We deliver to lockers!
Pick up your orders anytime, hassle-free!
Fast Delivery!
Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!
2-Year Warranty
Reliable products, worry-free!
Easy 14-Day Returns
Unused items? No questions asked!
Description
Overview
This solid state relay is used in applications for: electric power, chemical, plastic injection, packaging, incubators, ovens, and other industrial equipment automatic switch.
Specifications
| Product Name | Solid State Relay |
| Type | SSR-25AA |
| Material | Metal, Plastic, Electric Parts |
| Control Method | Zero Cross Trigger |
| Operating Voltage(input) | 80~250VAC 50/60Hz |
| Min. ON/OFF Voltage | ON＞45V , OFF＜35V |
| Rated Current | 25 A |
| Trigger Current | 5.0mA / 110VAC max. |
| Operating voltage(output) | 24-380VAC |
| Voltage Drop | 1.6V / 25°C |
| Leakage Current | 3 mA |
| Response Time | ON＜20ms , OFF＜20ms |
| Max. Back Voltage | 600 VAC |
| Max. Durated Current | 275A |
| Mounting Hole Size | Small Dia: 4mm, Big: 7 x 4.3mm |
| Relay Size | 64 x 45 x 23 mm |
| Main Color | Silver Tone, Gray |
| Weight | ~110g |
| Operating Temperature | -20°C ~ +80°C |
| Dielectric Strength | Over 2.5KVAC / 1min |
| Isolation Strength | Over 50MΩ / 500VDC |
Guiding of Model
 |
|
| 1. | Product |
| SSR：Single Phase S.S.R TSR：Three Phase S.S.R |
|
| 2. | Output Current |
| 10=10A 25=25A 40=40A 50=50A 75=75A |
|
| 3. | input Operating Voltage |
| L：4 ~20 mA D：4 ~32 VDC A：80 ~ 250 VAC V：Variable Resister |
|
| 4. | Output Operating Voltage |
| A：AC Voltage D：DC Voltage |
|
| 5. | Output Voltage Range |
| H：90 ~ 480 VAC (High Voltage) non ：Standard Type |
|
Product Details
NEXRYK_SSR-25AA
85 Items
Filter list of variants by: |
|
|---|---|
| Max current: | 25A 40A 60A 90A |
| Reference | Max current | Quantity | Availability | Price | Add to cart |
|---|---|---|---|---|---|
