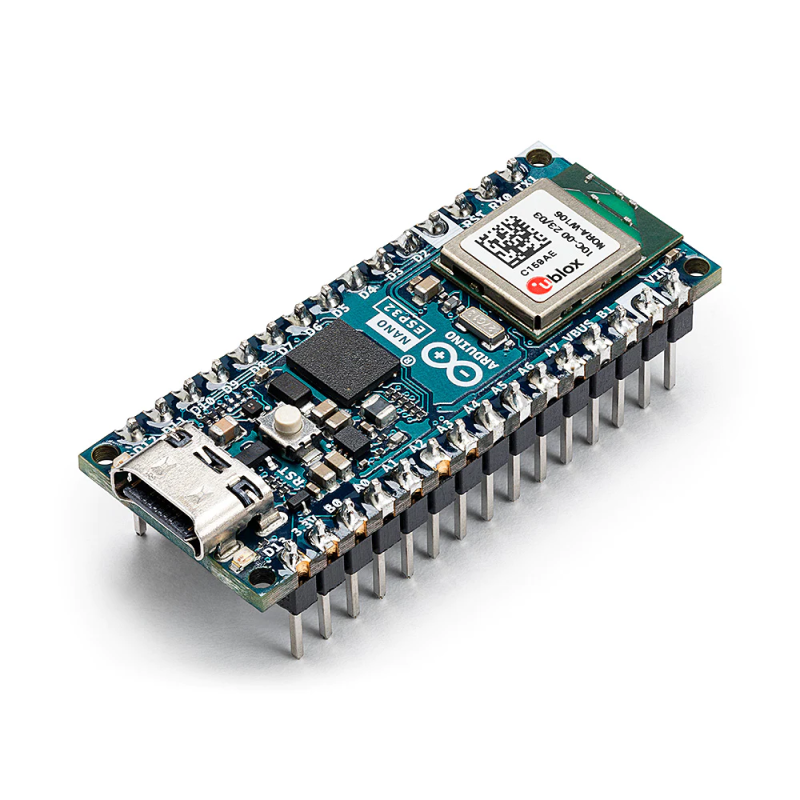

Arduino® Nano ESP32 with headers
  • Arduino® Nano ESP32 with headers
  • Arduino® Nano ESP32 with headers
  • Arduino® Nano ESP32 with headers
  • Arduino® Nano ESP32 with headers

Arduino® Nano ESP32 with headers

HFDEIA_ABX00083
Arduino
lei128.52
Tax included
Quantity
Out-of-Stock

  We deliver to lockers!

Pick up your orders anytime, hassle-free!

  Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

  2-Year Warranty

Reliable products, worry-free!

  Easy 14-Day Returns

Unused items? No questions asked!

Description

Original Product

Authorized Arduino® Distributor
We are an official and authorized partner of Arduino®, one of the world's leading manufacturers of boards and electronic components.

 Arduino logo

Do you need a larger quantity?

We offer genuine Arduino products both from our stock and directly from the manufacturer, in any desired quantity, at negotiable prices, with delivery in approximately 2 weeks or even sooner. Additionally, you can order any Arduino product from us, even if it is not listed on our website.

Contact us for more details and to benefit from personalized offers!

Overview

Introducing the Nano ESP32, a powerful addition to the Arduino ecosystem that brings the popular ESP32-S3 to the world of Arduino and MicroPython programming. Whether you're a beginner stepping into the world of IoT or MicroPython, or an advanced user looking to incorporate it into your next product, the Nano ESP32 is the perfect choice. It covers all your needs to kick-start your IoT or MicroPython project with ease.

Let's explore the key features of the Nano ESP32:

  • Tiny footprint: Designed with the well-known Nano form factor in mind, this board's compact size makes it perfect for embedding in standalone projects.
  • Wi-Fi® and Bluetooth®: Harness the power of the ESP32-S3 microcontroller, well-known in the IoT realm, with full Arduino support for wireless and Bluetooth® connectivity.
  • Arduino and MicroPython support: Seamlessly switch between Arduino and MicroPython programming with a few simple steps. We even offer an introductory course for those new to the MicroPython world, find more information in the documentation page.
  • Arduino IoT Cloud compatible: Quickly and easily create IoT projects with just a few lines of code. Our setup takes care of security, allowing you to monitor and control your project from anywhere using the Arduino IoT Cloud app. (Available starting August 2023)
  • HID support: Emulate human interface devices, such as keyboards or mice, over USB, opening up new possibilities for interacting with your computer.

There are no more excuses to delay your exploration of IoT and MicroPython. The Nano ESP32 provides everything you need to start creating and discovering the endless possibilities.

Tech specs
Board Name Arduino® Nano ESP32 with headers
SKU ABX00083
Microcontroller u-blox® NORA-W106 (ESP32-S3)
USB connector USB-C®
Pins Built-in LED Pin 13
Built-in RGB LED pins 14-16
Digital I/O Pins 14
Analog input pins 8
PWM pins 5
External interrupts All digital pins
Connectivity Wi-Fi® u-blox® NORA-W106 (ESP32-S3)
Bluetooth® u-blox® NORA-W106 (ESP32-S3)
Communication UART 2x
I2C 1x, A4 (SDA), A5 (SCL)
SPI D11 (COPI), D12 (CIPO), D13 (SCK). Use any GPIO for Chip Select (CS)
Power I/O Voltage 3.3 V
Input voltage (nominal) 6-21 V
Source Current per I/O Pin 40 mA
Sink Current per I/O Pin 28 mA
Clock speed Processor up to 240 MHz
Memory ROM 384 kB
SRAM 512 kB
External Flash 128 Mbit (16 MB)
Dimensions Width 18 mm
Length 45 mm

FAQs

Is the Nano ESP32 compatible with MicroPython?

Absolutely! This board fully supports MicroPython. For detailed information on setting it up and getting started with MicroPython, please visit docs.arduino.cc/nano-esp32.

How can I power the Nano ESP32?

The Nano ESP32 can be powered in two ways. Firstly, you can power it via the USB port, which activates the VBUS pin as an output. Alternatively, you can supply power through the VIN pin, accepting an input voltage range of 5 to 18 Volts.

Does it use the official ESP32 core?

Yes, if you are an ESP32 user, simply install the latest version of the Arduino Nano ESP32 core through the board manager in the Arduino IDE. For more information, please refer to the official documentation page.

Will the Nano ESP32 be compatible with sketches from generic ESP32 boards?

The Arduino Nano ESP32 can run code written for other ESP32 devices without any fuss. It's designed to be fully compatible with the ESP32 ecosystem, making it easy to port existing code.
