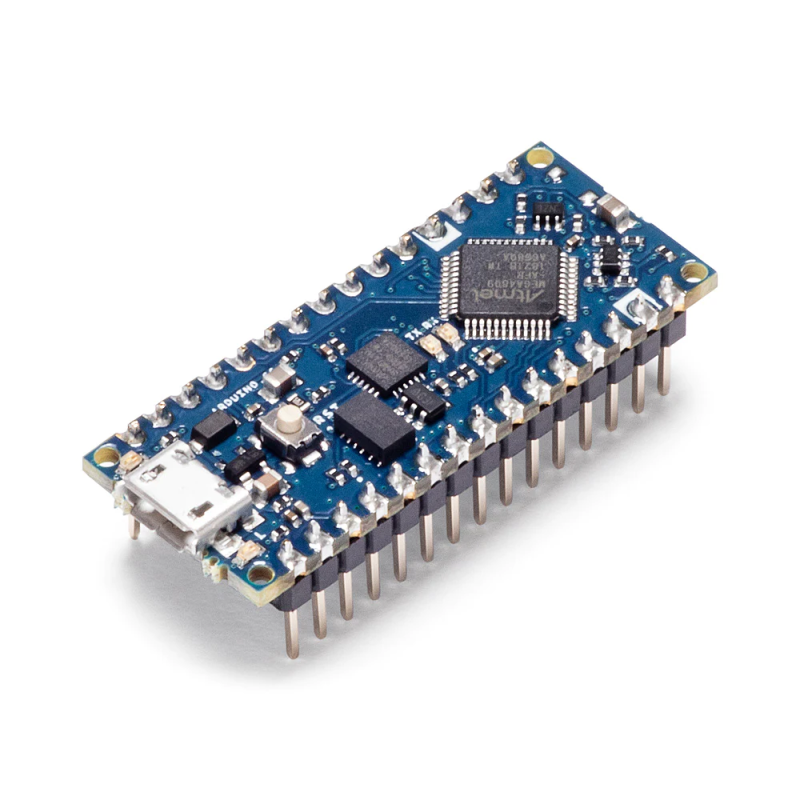

Arduino® Nano Every with headers
Pick up your orders anytime, hassle-free!
Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!
Reliable products, worry-free!
Unused items? No questions asked!
Original ProductAuthorized Arduino® Distributor |
Do you need a larger quantity?We offer genuine Arduino products both from our stock and directly from the manufacturer, in any desired quantity, at negotiable prices, with delivery in approximately 2 weeks or even sooner. Additionally, you can order any Arduino product from us, even if it is not listed on our website. Contact us for more details and to benefit from personalized offers! |
OverviewThe Nano Every is Arduino’s 5V compatible board in the smallest available form factor: 45x18mm! The Arduino Nano is the preferred board for many projects requiring a small and easy to use microcontroller board. The small footprint and low price, make the Nano Every particularly suited for wearable inventions, low-cost robotics, electronic musical instruments, and general use to control smaller parts of a larger projects. The Arduino Nano Every is an evolution of the traditional Arduino Nano board but features a lot more powerful processor, the ATMega4809. This will allow you to make larger programs than with the Arduino Uno (it has 50% more program memory), and with a lot more variables (the RAM is 200% bigger). An Improved Arduino NanoIf you used Arduino Nano in your projects in the past, the Nano Every is a pin-equivalent substitute. The main differences are: a better processor, and a micro-USB connector. The board comes in two options: with or without headers, allowing you to embed the Nano Every inside any kind of inventions, including wearables. The board comes with tessellated connectors and no components on the B-side. These features allow you to solder the board directly onto your own design, minimizing the height of your whole prototype. Oh, and did we mention the improved price? Thanks to a revised manufacturing process, the Arduino Nano Every costs a fraction of the original Nano … what are you waiting for? Upgrade now! Tech specsThe Arduino Nano Every is based on the ATMega4809 microcontroller. |
Microcontroller | ATMega4809 (datasheet) |
Operating Voltage | 5V |
VIN min-MAX | 7-21V |
DC Current per I/O Pin | 20 mA |
DC Current for 3.3V Pin | 50 mA |
Clock Speed | 20MHz |
CPU Flash Memory | 48KB (ATMega4809) |
SRAM | 6KB (ATMega4809) |
EEPROM | 256byte (ATMega4809) |
PWM Pins | 5 (D3, D5, D6, D9, D10) |
UART | 1 |
SPI | 1 |
I2C | 1 |
Analog Input Pins | 8 (ADC 10 bit) |
Analog Output Pins | Only through PWM (no DAC) |
External Interrupts | all digital pins |
LED_BUILTIN | 13 |
USB | Uses the ATSAMD11D14A (datasheet) |
Length | 45 mm |
Width | 18 mm |
Weight |
5 gr (with headers) |
ConformitiesThe following Declarations of Conformities have ben granted for this board:
GB4943 WEE RCM RoHS CE FCC UKCA REACH
Pinout Diagram |
