PCB Ruler

Overview

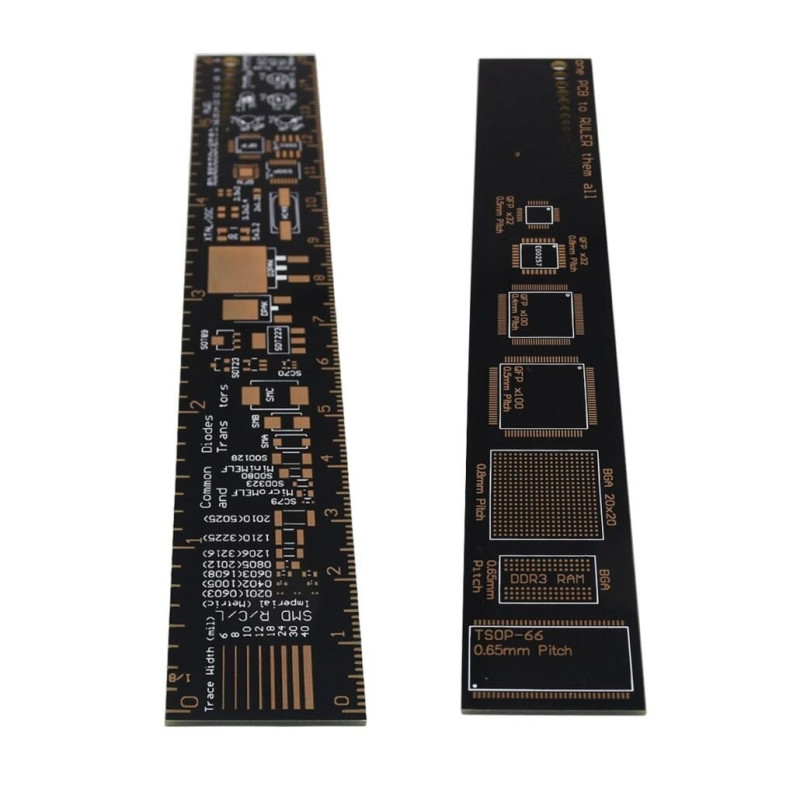

This versatile PCB ruler, it also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, and more.
Electronic enthusiasts in the design process in urgent need of a measurement tool can be set all the necessary functions.
R-4 gold-plated PCB, high-end atmosphere, high hardness, wear resistance.

Specifications

The measurement length: 20 cm
Commonly used packages: SOT89, SOT8, SOP16, SOT363, 3225, SOD80, MARK, TQFP64.
Commonly used resistance and capacitance patch package: 0201,0402,0603,0805,1206,1812,3216,3528,6032,7343.
Angle measurement: 180 degrees
Commonly used MOS, diode, transistor package: SOT23, SOT223, SOT25, TO252, D2PAK, SMA, SMB, SMC
