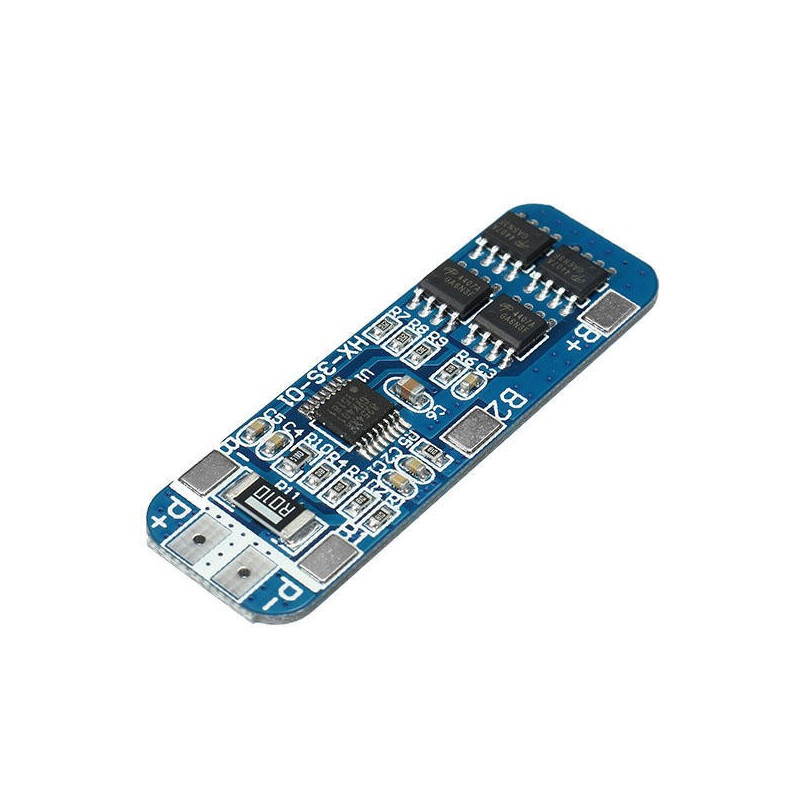

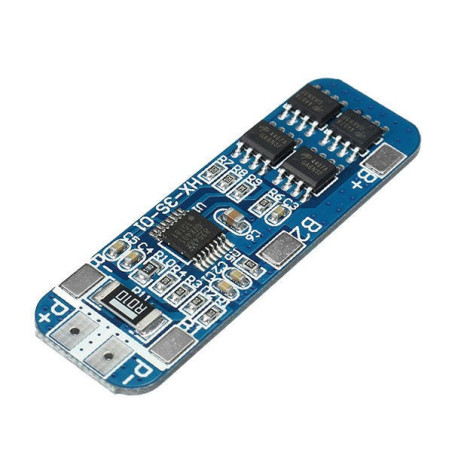

10A 12V Lithium Battery Charger Protection Board Module
Pick up your orders anytime, hassle-free!
Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!
Reliable products, worry-free!
Unused items? No questions asked!
Specification:
Model: HX-3S-01
Overcharge voltage range: 4.25-4.35v ± 0.05v
Overpressure voltage range: 2.3-3.0v ± 0.05v
Quiescent current: <6uA
Internal resistance: <60m
Size: 50 * 16 * 1.0mm
Maximum operating current: 5-8A Operating temperature: -40 --- +50 ℃
Maximum instantaneous current: 9-10A Storage conditions: -40-- +80 ℃
Quiescent current: less than 6uA Effective life: more than 30,000 hours
Internal resistance: less than 60mΩ
The protection board size and device description;
The protection board size is 50 * 16 * 1.0mm
Reference: VWNJHS_drop-down-usb-display
