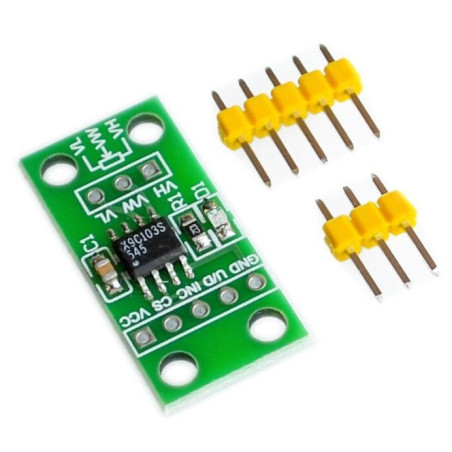

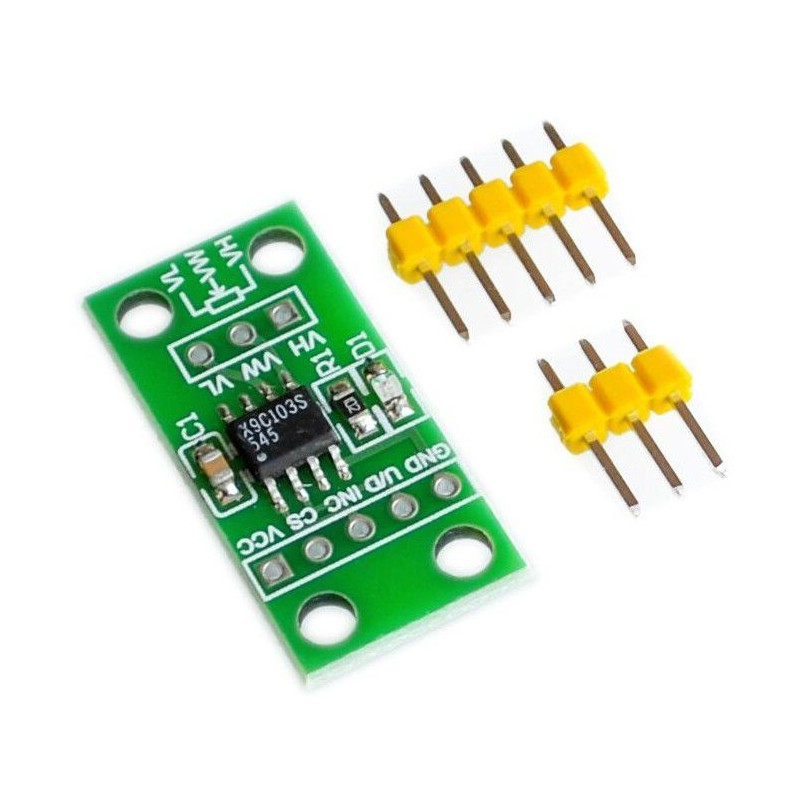

X9C103S Digital Potentiometer Module
  • X9C103S Digital Potentiometer Module
  • X9C103S Digital Potentiometer Module
  • X9C103S Digital Potentiometer Module
  • X9C103S Digital Potentiometer Module
  • X9C103S Digital Potentiometer Module
  • X9C103S Digital Potentiometer Module

X9C103S Digital Potentiometer Module

DQPNYK_X9C103S
lei21.17
Tax included
Quantity
11 Items

  We deliver to lockers!

Pick up your orders anytime, hassle-free!

  Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

  2-Year Warranty

Reliable products, worry-free!

  Easy 14-Day Returns

Unused items? No questions asked!

Description

Overview

The X9C103 is a digitally controlled (XDCP) potentiometer. The device consists of a resistor array, wiper switches, a control section, and nonvolatile memory. The wiper position is controlled by a three-wire interface.

The device can be used as a three-terminal potentiometer or as a two-terminal variable resistor in a wide variety of applications ranging from control to signal processing to parameter adjustment.

Specifications

  • Supply voltage: 3V-5V
  • Chip: X9C103S
  • PCB board size: 2.7 * 1.3CM
  • 10K span potentiometer.
  • Potentiometer center tap between 0-10k slide in total 100 (potentiometer wiper typical impedance 40 ohms)
  • VL and VH digital potentiometer sliding rheostat port corresponding to the low-end and high-end, allowing the input voltage range -5V to + 5V.
