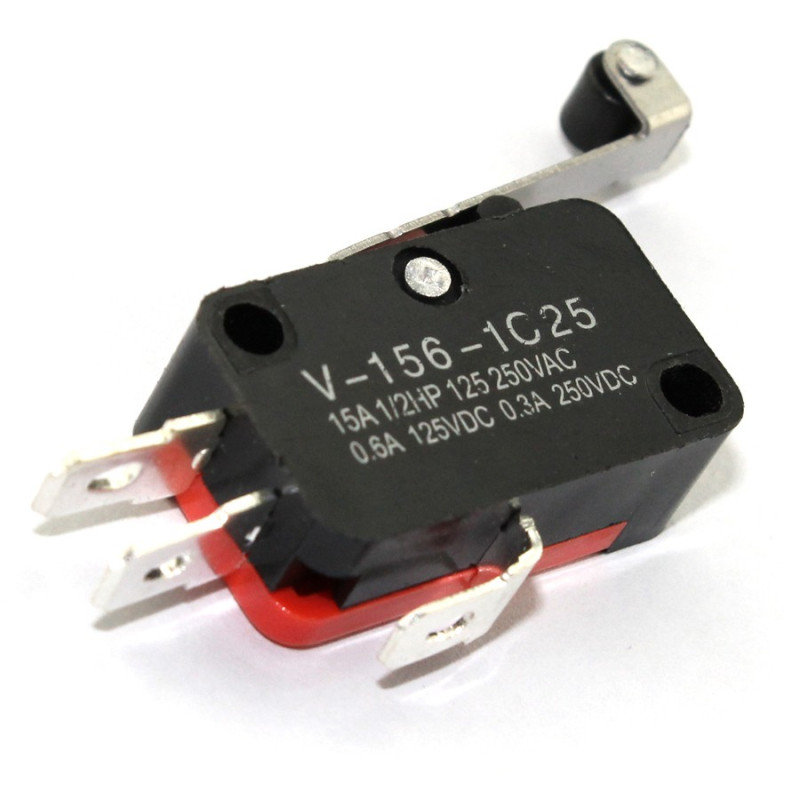

V-156-1C25 Limit Switch

Overview

Limit switch are used for controlling machinery as part of a control system, as a safety interlocks, or to count objects passing a point.A limit switch is an electromechanical device that consists of an actuator mechanically linked to a set of contacts. When an object comes into contact with the actuator, the device operates the contacts to make or break an electrical connection.

Limit switches are used in a variety of applications and environments because of their ruggedness, ease of installation, and reliability of operation. They can determine the presence or absence, passing, positioning, and end of travel of an object. They were first used to define the limit of travel of an object; hence the name "Limit Switch".

Specifications

• Type: Limit Switches
• Terminal Blade Width: ~0.47cm

• Actuator Type: Long Straight Hinge Lever
• Model NO.: V-156-1C25
• Fixing Holes Dia.: ~0.32cm

• Rating: 15A, 1/2HP, 125/250VAC  0.6A,125VDC; 0.3A, 250VDC
• Button Height: ~0.3cm

• Actuator Size: ~5.1 x 0.4cm (L*W)
• Contact configuration: SPDT
• Switch Body Size: ~2.8 x 1 x 1.6cm
• Mechanical Life: 5,000,000 cycles

• Electrical Life: 100,000 cycles

• Operating Force: 160N
