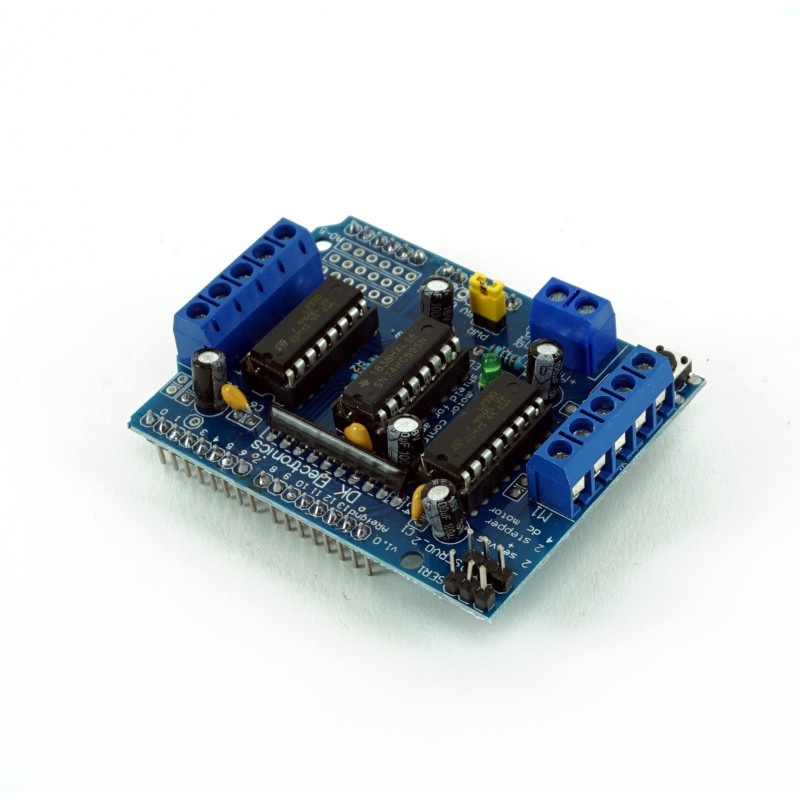

Motor control shield L293D

Name: Motor control shield L293D
Brand: ArduShop
SKU: KCFJNJ_MS-L293D
Price: 17.19 RON
Availability: InStock

Reference KCFJNJ_MS-L293D

Shield engine controller

lei17.19

Tax included

Quantity

In stock: 63 Items

We deliver to lockers!

Pick up your orders anytime, hassle-free!

Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

2-Year Warranty

Reliable products, worry-free!

Easy 14-Day Returns

Unused items? No questions asked!

Description
Product Details

Description

Description:

The product is a shield with two drivers engine type L293D to control 4 motors suitable for normal, small, or 2 servo motors.

This shield is useful for your first projects that require motor control electronics because it is very turned easily controlled with the Arduino development board. It also contains a shield-type shift register 74HC595 to be easier to control.

Specifications:

Supply voltage logic circuits: 5V;
Power supply engines: 4.5V - 36V;
Current engines continuously: 0.6A;
Current engines peak: 1.2A;
Overcurrent and overtemperature protection;
Compatible with Arduino Uno.

Package Included:

1 x Shield engine controller

Practical example:

Tutorial to install and use the module you can find in the link below: http://www.14core.com/controlling-the-l293d-unomega-shield-with-stepper-motor/

Product Details

Reference KCFJNJ_MS-L293D

EAN13 6427854014511

In stock 63 Items
