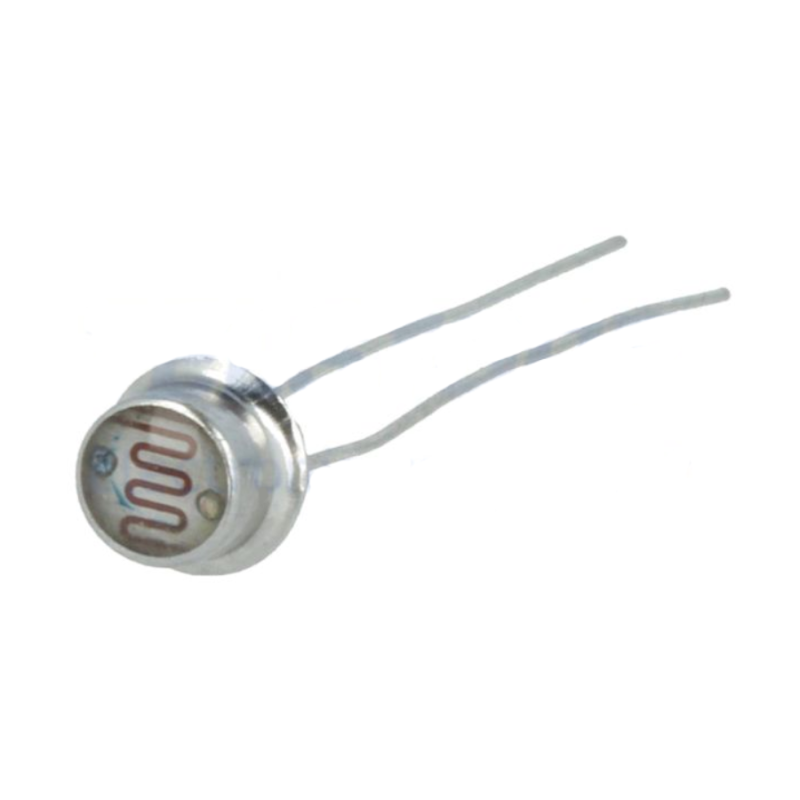

Photoresistor 90mW

Product Description

The PGM5506-MP is a passive light-dependent resistor (LDR), also known as a photocell, whose resistance varies with ambient light intensity. It is ideal for applications such as light detection, automatic lighting control, light meters, alarm systems, and educational electronics projects using microcontrollers like Arduino or Raspberry Pi.

This component features a through-hole (THT) mounting style, making it easy to install on breadboards or prototyping boards. The compact 5.5 mm diameter housing offers good sensitivity, with peak response at a 540 nm wavelength (green light).

Technical Specifications

• Manufacturer: Token
• Model (MPN): PGM5506-MP
• Maximum power dissipation: 90 mW
• Resistance at 10 lux: 2–6 kΩ
• Peak spectral sensitivity: 540 nm
• Maximum operating voltage: 100 VDC
• Mounting type: THT (through-hole)
• Sensor diameter: 5.5 mm
• Spectral response: visible (green – natural light)

Recommended Applications

• Ambient light detection
• Automatic lighting systems (night lights, street lamps, etc.)
• Alarm and presence detection systems
• Educational or hobby projects using Arduino
• Photoelectric control in analog circuits

Package Content

• 1x Photocell (LDR) 90 mW – Token PGM5506-MP
