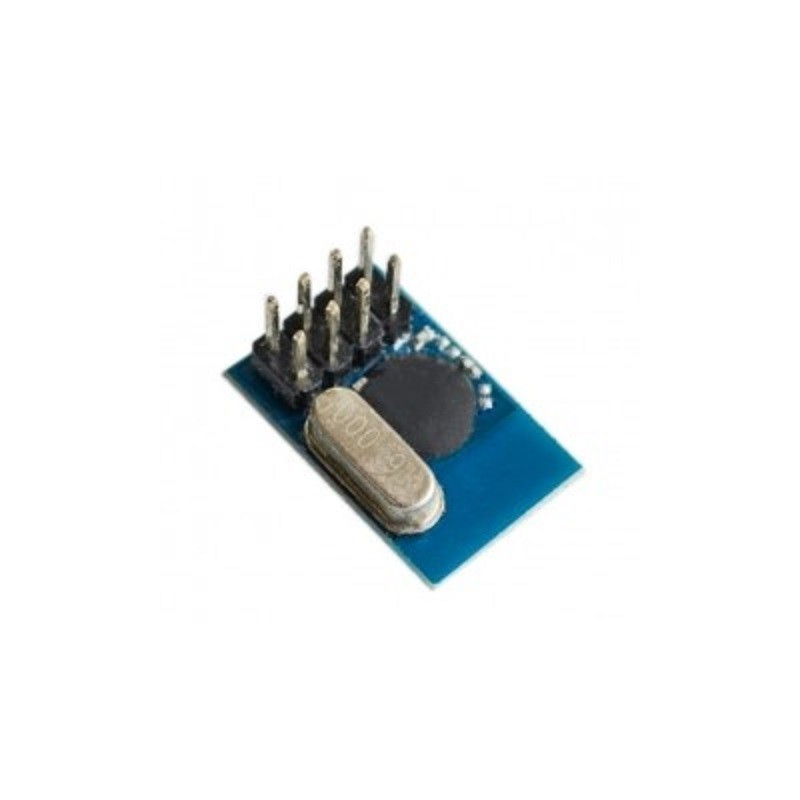

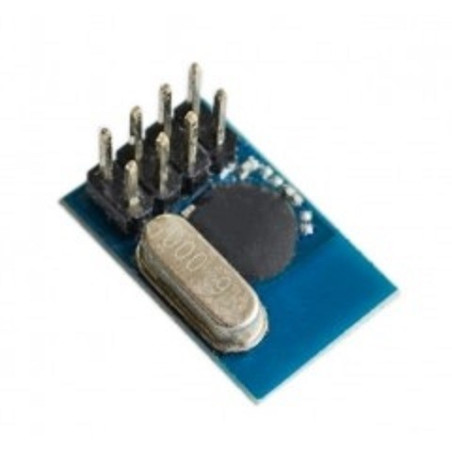

RF transceiver module 2.4GHz + 2.4G wireless SI24R1

LJTAXL_SI24R1
lei10.39
Tax included
Quantity
Out-of-Stock

  We deliver to lockers!

Pick up your orders anytime, hassle-free!

  Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

  2-Year Warranty

Reliable products, worry-free!

  Easy 14-Day Returns

Unused items? No questions asked!

Description

Overview

NRF24L01+ SI24R1 is fully compatible (SPI operation timing, registers, definitions, state diagram), can communicate with each other, support NRF24L01+ all communications.

Default mode output power of SI24R1 is 2 ~ 3dBm, if you want the output is 7dBm, you should write 1 (NRF24L01 + This bit is not used, the default is 0) into the lowest bit register address 0x06 (RF_SETUP) . For example, the 01register, 0x061111.

Specifications

Operating voltage: 1.9 - 3.6V;
12.5mA Current consumption for 0 dBm emision power;
15mA Current consumption for 2 Mbps data receive ;
26uA Current consumption in standby;
900nA Current consumption in power down;
250kbps, 1Mbps or 2Mbps Speed;
2.4 GHz operating frequency;
SPI communication interface;
Could send data in open space up to 80m.
Size: 15 x 29mm.

Product Details
LJTAXL_SI24R1
6427854016171
