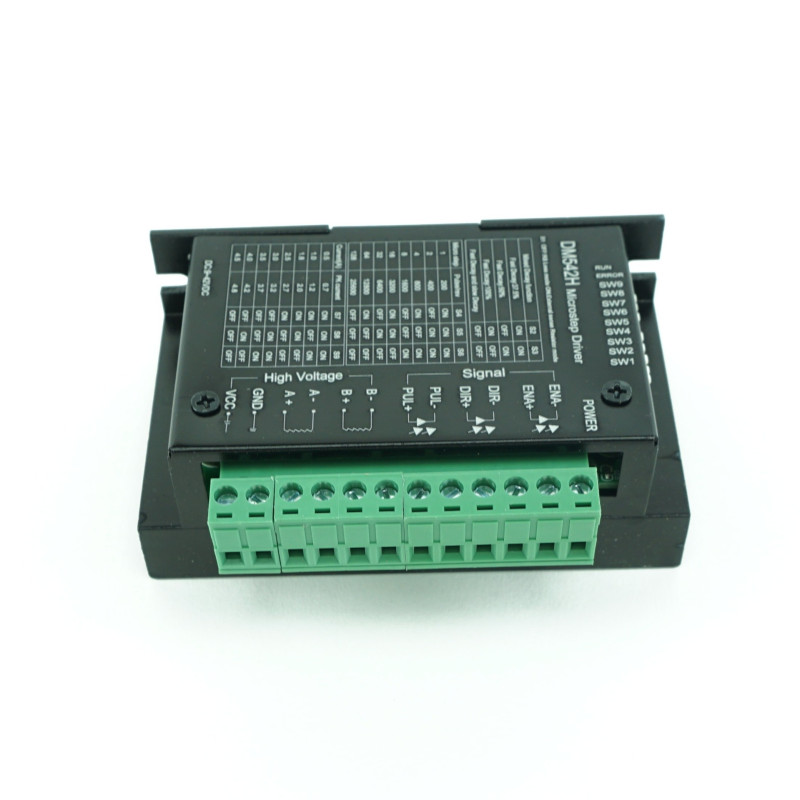

Stepping motor driver DM542H,DC9-420VDC,0.5~4.8A
  • Stepping motor driver DM542H,DC9-420VDC,0.5~4.8A
  • Stepping motor driver DM542H,DC9-420VDC,0.5~4.8A
  • Stepping motor driver DM542H,DC9-420VDC,0.5~4.8A

Stepping motor driver DM542H,DC9-420VDC,0.5~4.8A

MJWOON_DM542H
lei93.98
Tax included
Quantity
Out-of-Stock

  We deliver to lockers!

Pick up your orders anytime, hassle-free!

  Fast Delivery!

Orders placed by 2:00 PM are shipped the same day. Delivered within 24h!

  2-Year Warranty

Reliable products, worry-free!

  Easy 14-Day Returns

Unused items? No questions asked!

Description

Product characteristics

Signal Input: Single-ended, Pulse/Direction
Subdivision Options: 1/2/4/8/16/32/64/128 Subdivision
Output current:0.5A-4.8A
Input Voltage: 9-42VDC (DC 36V and below recommended)
Automatic Halving of Current at Station
Drive 4,6,8-wire two-phase and four-phase 57 series stepper motors (or 42 series fuselage greater than or equal to 60MM)
Photocoupler isolation signal input, strong anti-interference ability
has the functions of overheating, overcurrent, undervoltage locking, input voltage anti-reverse protection and so on.
Small size, easy to install
External signal 3.3V-24V universal, without series resistance



Electrical environment

Cooling mode Natural cooling or forced air cooling.
occasion

It should not be placed next to other heating equipment. Dust, oil, corrosive gas and humidity should be avoided.

Flammable gases and conductive dust are prohibited in large and strong earthquake sites.
humidity 40-90%RH
shock 10-55Hz/0.15mm
Storage temperature -20-65 C
weight 0.2KG





Resistance mode setting

Detection Resistance Mode

S1

Internal resistance mode

ON

External resistance mode

OFF



Attenuation mode setting

Attenuation mode S2 S3
Fast decline: 37.5% ON ON
Fast decline: 50% OFF ON
Fast decline: 100% ON OFF
Mixed attenuation OFF OFF



Running Current Setting

The output operating current is set by using S7, S8 and S9 three-digit switch as follows:

average current peak current S7 S8 S9
0.5A 0.7A ON ON ON
1.0A 1.2A ON OFF ON
1.8A 2.0A ON ON OFF
2.5A 2.7A ON OFF OFF
3.0A 3.2A OFF ON ON
3.5A 3.7A OFF OFF ON
4.0A 4.2A OFF ON OFF
4.5A 4.8A OFF OFF OFF



Subdivision setting

Set the subdivision (pulse) with S4, S5 and S6 three-digit dial switches, as follows:

To subdivide Number of pulses/cycles S4 S5 S6
1 Two hundred ON ON ON
2 Four hundred OFF ON ON
4 Eight hundred ON OFF ON
Eight One thousand and six hundred OFF OFF ON
16 3200 ON ON OFF
Thirty-two 6400 OFF ON OFF
64 12800 ON OFF OFF
128 25600 OFF OFF OFF
Product Details
MJWOON_DM542H
6427854017611
Comments (0)
Grade
No customer reviews for the moment.
