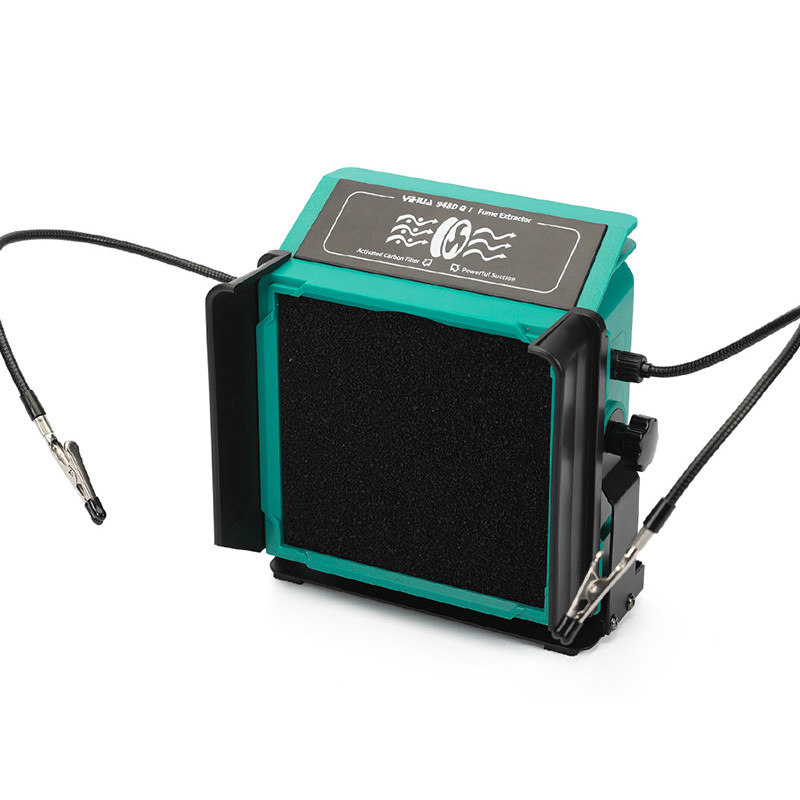

YIHUA 948DQ-I double filtering fume extractor for soldering

Product Description

The YIHUA 948DQ-I is a compact fume extractor designed to keep the air clean during soldering, pyrography, or stained-glass work. The deflector panel directs fumes straight to the 5-blade fan, while the dual activated carbon filtration (front + rear) traps particles and reduces unpleasant odors. The tilting base lets you adjust the capture angle (approx. 30°) so fumes are efficiently drawn in even when working on larger parts.

With a power draw of just 5 W, the 948DQ-I delivers a generous airflow for its size (approx. 2.7 m³/min), runs quietly, and takes up very little bench space. In addition, the set includes fume guards that channel the flow toward the filter and a adjustable base, while the included “helping hands” quickly secure wires or boards during soldering for clean, repeatable results.

Suitable for workshops, laboratories, GSM service centers, or makers working at home who want to minimize exposure to flux vapors.

Technical Details

• Model: 948DQ-I
• Power supply: 230 V~ (220–240 V, 50–60 Hz)
• Power consumption: 5 W
• Airflow: ~2.7 m³/min
• Filtration type: dual filtration with activated carbon filters (front + rear)
• Fan: 5 blades, low-noise
• Intake panel angle: ~30°, adjustable on a tilting base
• Unit dimensions: 90 × 145 × 164 mm (±5 mm)
• Weight: ~0.85 kg (±10%)
• Operating temperature range: 0–40 °C

Package Contents

• 1× YIHUA 948DQ-I fume extractor
• 8× activated carbon filters (4 front + 4 rear)
• 2× fume guards/deflectors (left + right)
• 1× adjustable tilting base
• 2× “helping hands” clamps
