Product Description

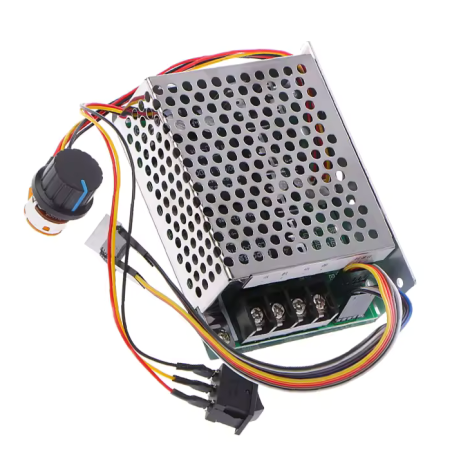

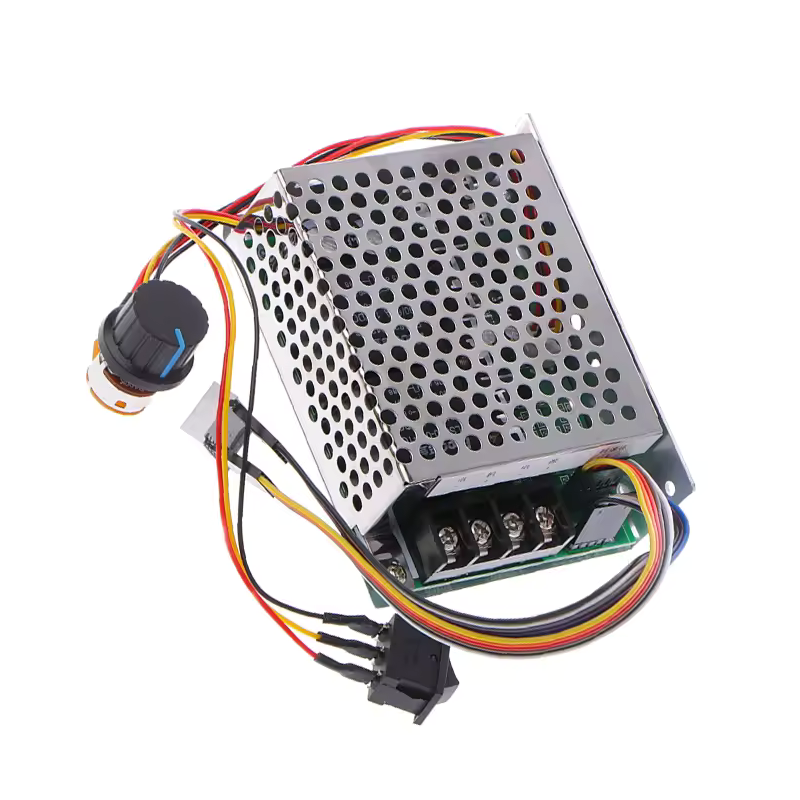

Precisely control the speed of brushed DC motors at 12 V / 24 V / 36 V / 48 V with this high-power 2000 W PWM controller. The well-ventilated metal case protects the electronics and helps dissipate heat, while the digital display shows the speed percentage (0–100%) for accurate adjustments. The potentiometer includes an integrated mechanical On/Off/On switch, enabling not only start/stop but also reversing the rotation direction (FWD–OFF–REV) of the motor. Designed for applications requiring high torque and quick response (cutters, industrial fans, DC pumps, DIY projects), the controller operates at a 15 kHz frequency for smooth running and reduced motor noise. Screw terminals simplify wiring, and quality electronics ensure long-term reliability.

Note: compatible only with brushed DC motors. To protect the motor and the controller, set the potentiometer to 0% before changing direction and use properly rated cables/terminations. The maximum available power depends on the supply voltage, motor current, and cooling conditions.

Technical Details

• Input voltage: DC 10–55 V
• Output voltage: proportional to load (PWM)
• Maximum peak current: 60 A
• Recommended continuous current: 40 A
• Maximum power: up to 2000 W (depending on voltage, current, and cooling)
• Speed adjustment range: 0–100% (percentage display)
• PWM frequency: ~15 kHz
• Adjustment method: linear potentiometer with On/Off/On switch for FWD–OFF–REV
• Control type: current limiting / PWM
• Forward/reverse: supported (reverse)
• Motor compatibility: brushed DC motors
• Connectivity: screw terminals (power +/−, motor M+/M−)
• Approx. dimensions: 111 × 78 × 50 mm

Pinout:

From left to right, the pins are as follows:

 - Motor− (M−)

 - Motor+ (M+)

 - Power − (GND)

 - Power + (VIN)

 - Digital display

Usage recommendations:

• Observe the polarities VIN+/GND and M+/M−.
• Select cables and fuses sized for the current (e.g., up to 40 A continuous).
• For heavy loads, install the controller in a well-ventilated area; add extra cooling if necessary.
• Do not use with brushless (BLDC) or AC motors.

Package Content

• 1 × PWM DC motor speed controller, 10–55 V, 60 A, 2000 W, with integrated potentiometer and On/Off/On switch.
